DUNE HWDB Training: Uploading spreadsheets via HWDB Explorer

This page describes how to upload spreadsheets (xlsx,csv,tsv,txt,json, and zip) to the HWDB at once via the HWDB Explorer

You can upload spreadsheets to the HWDB using the HWDB Explorer.

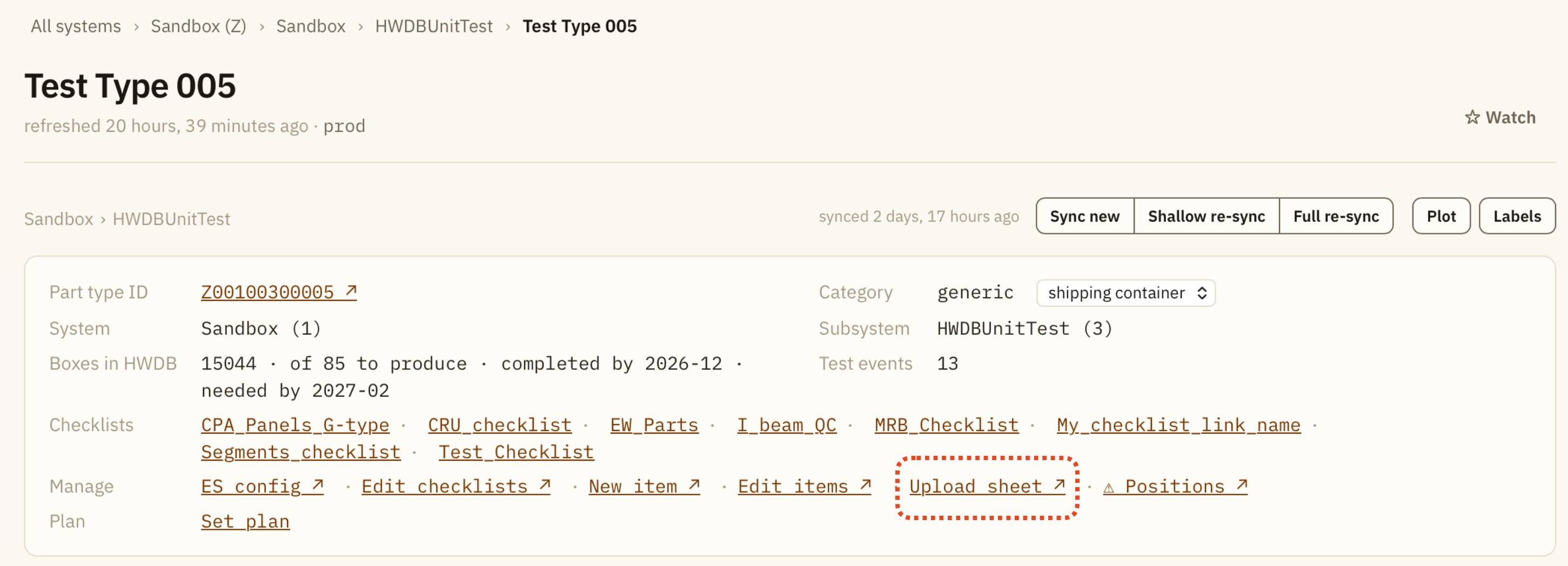

Uploading is done for every given Component Type. Thus, the process starts by selecting which components (PIDs) of Type you want to upload. This is done by going to the page of the target Type View. A screenshot of typical Type View is shown below as an example: Towards the top of such page, there is a link, Upload sheet, which takes you to the sheet uploder site for the selected Component Type. In this case, the selected Component Type Name is “Test Type 005” and its Component Type ID is Z00100300005.

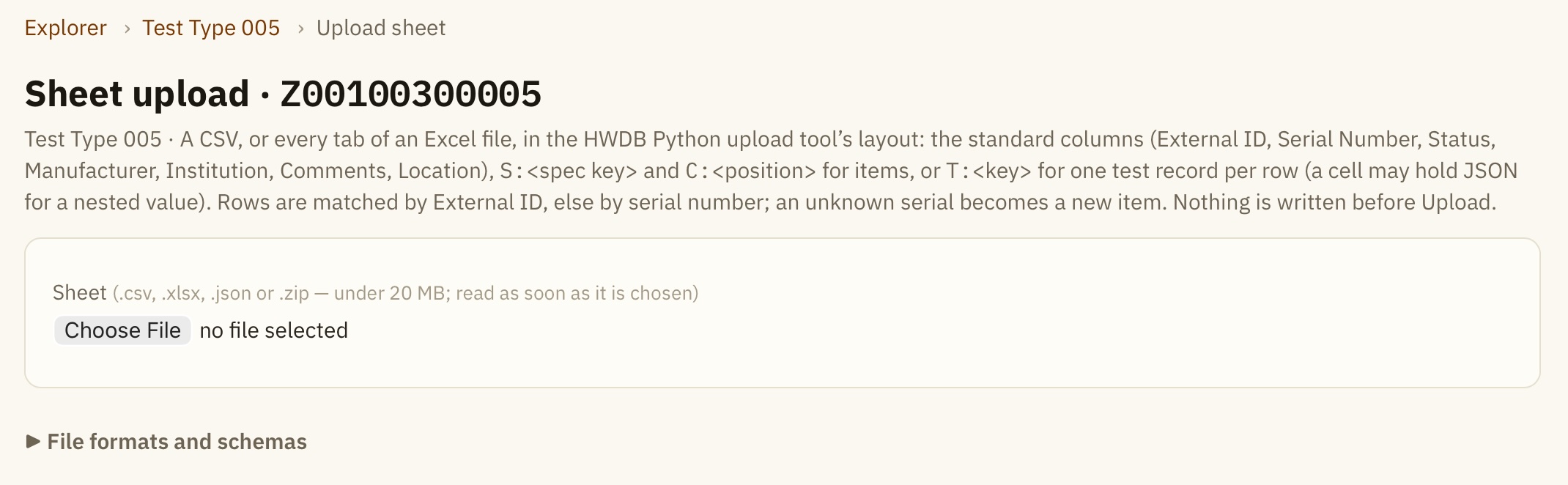

Once you arrive at the sheet uploader page, you should see a screen like below:

You provide your file and start the upload process here.

It accepts csv, xlsx, json, and zip files. The more detail about the format/scheme of these files can be found by clicking the File formats and schemas tick button in the sheet uploader page. We also reproduce the description in the following section.

The overall procedure goes as the following:

• Provide your spreadsheet file.
• The Explorer auto-identifies the column labels.
• If needed, you re-assign the column labels. Make sure you assign either External ID/PID or Serial Number. One of them is required.
• Click Check button. The Explorer checks your sheet(s).
• When ready, click Upload.

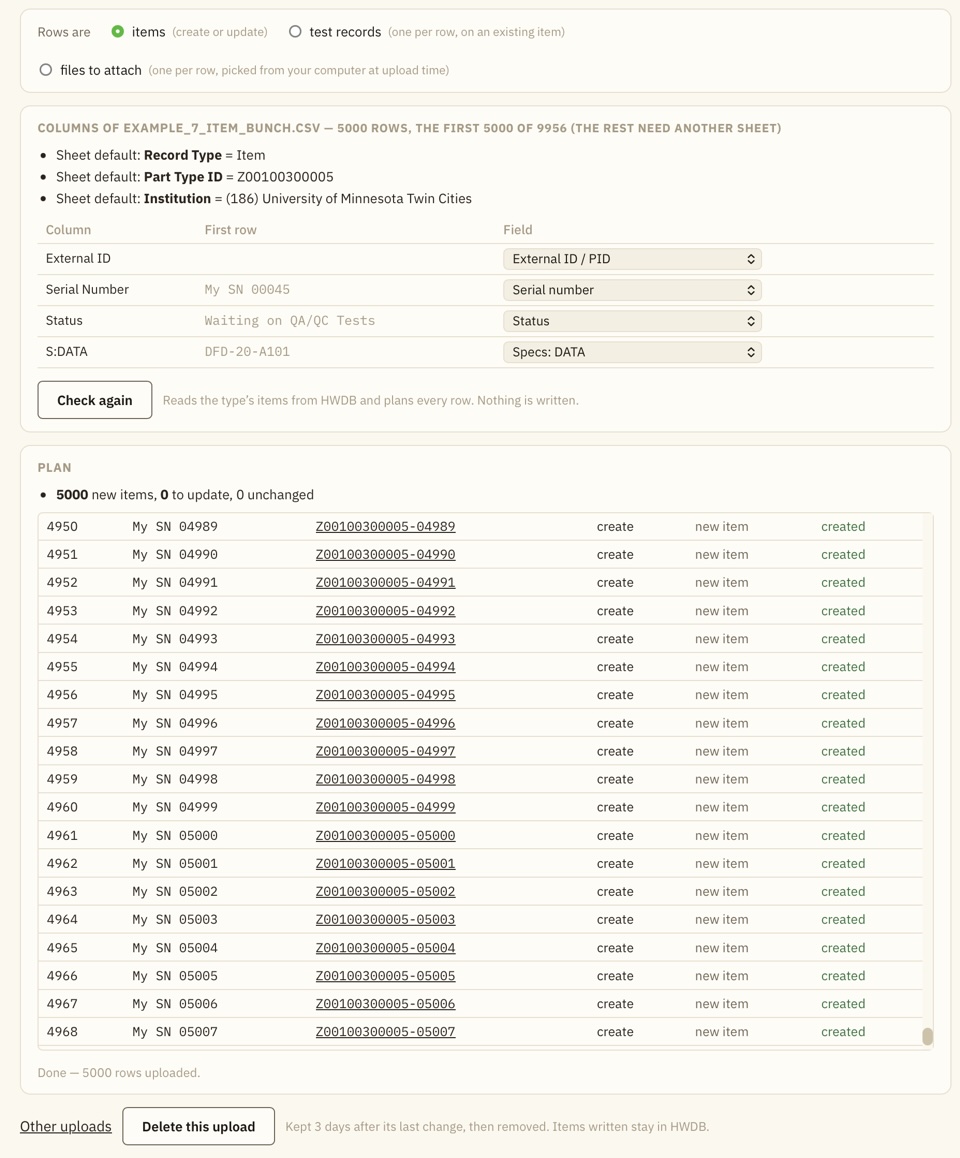

• When uploading is done, it displays its result as shown below.
• The resultant list can be also downloaded as a csv file.
  If you create new PIDs using your unique serial numbers, instead of just updating existing PIDs, then this resultant csv file contains the newly assigned PIDs, along with your specified serial numbers.

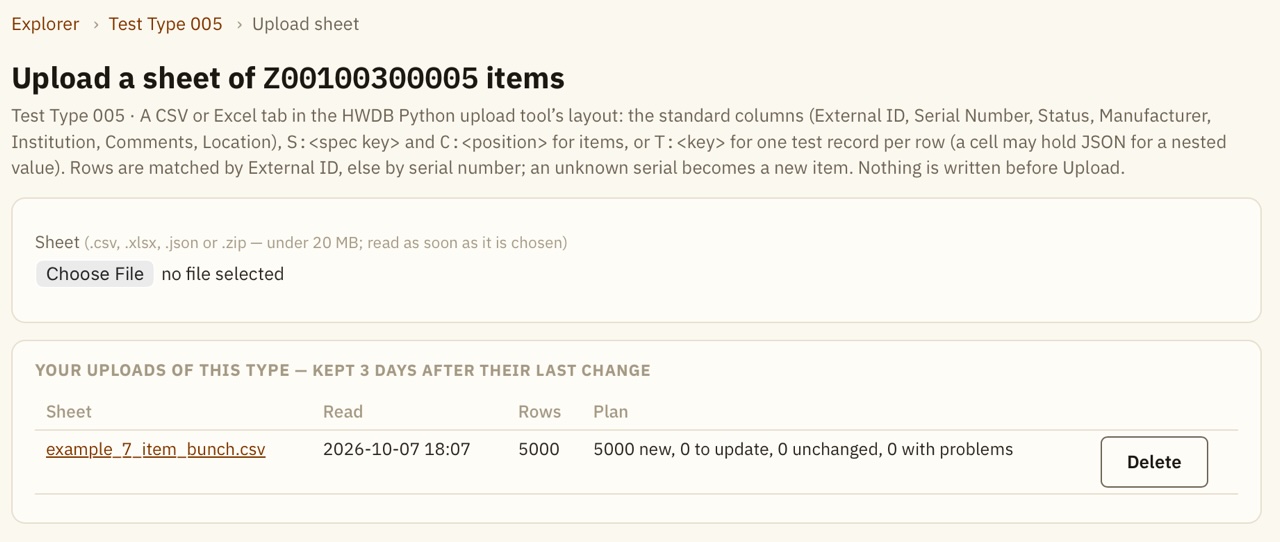

For cases like when you like to check the uploaded PIDs or failure of upload, the sheet information is kept within the Explorer for 3 days unless you manually delete it as shown below:

When there is an issue with uploading:

A Problems list will appear. It shows the rows (PIDs) that the HWDB refused, along with the response message from the HWDB. For each row, there is a Retry button that lets you re-upload that row (PID). There is also a Retry all failed button.

In the resultant csv file (list), these failed uploads are marked as fix the sheet.

File formats and schemas

This section describes the file formats and schemas.

Files

Limits: 20 MB per file, 5000 rows per tab. In a sheet or JSON record, a cell whose text is a JSON object or list becomes that nested value. A number written with a leading zero (a serial like 00123) stays text.

Sheet layout

The HWDB Python upload tool’s layout: an optional key/value block in columns A–B, a blank row, then the header row and the data rows. Block entries are defaults for every row (a cell wins over the block). Recognised block keys: Record Type (Item, Test, Item Image, Test Image), Part Type ID (must be this type), Test Name, and any column name such as Institution or Status.

Record Type,Item
Part Type ID,Z00100300005
Institution,(128) Brookhaven National Laboratory

External ID,Serial Number,Status,S:Drawing Number,C:A1,Comments
,BATCH-A,Waiting on QA/QC Tests,DFD-20-A101,,new item
Z00100300005-00018,,120,,D00400300002-00007,existing item

Every column is matched to a field on the job page (auto-filled from the names below; the last mapping used for a type is remembered in this browser). Rows are matched to items by External ID (the PID), else by Serial Number; a serial on several items is refused, so give the PID.

Items — create or update

Rows naming the same item merge into one record (later cells win). Check plans every row against the type’s live listing: create, update with the fields that differ, nothing to do, or a problem. Upload writes several items at a time: a create re-checks the serial first, so a retry never creates twice; an update is one PATCH of the standard fields and specs only when something differs; then the location and the positions. A row that hit a server-side timeout is tried once more after a few seconds on its own. A row HWDB refuses stays in the list in red with the reason and is listed again under Problems, where Retry sends that row again and Retry all failed every one; Download results (CSV) keeps the list.

Test records — one per row

A sheet is a Test sheet when the block says Record Type,Test or any column starts with T:; switch it by hand on the job page. Every row posts one record of the Test name on the page (the block’s Test Name fills it in). The test type is created on the component type on first use.

Example:

External ID,T:Date,T:Boxes[].Label,T:Boxes[].Checks[].Name,T:Boxes[].Checks[].Result
Z00100300005-00018,2026-09-25,box 1,seal,ok
Z00100300005-00018,2026-09-25,box 1,count,ok
Z00100300005-00018,2026-09-25,box 2,seal,torn

This gives one record:

{
  "Date": "2026-09-25",
  "Boxes": [
    {"Label": "box 1", "Checks": [{"Name": "seal", "Result": "ok"}, {"Name": "count", "Result": "ok"}]},
    {"Label": "box 2", "Checks": [{"Name": "seal", "Result": "torn"}]}
  ]
}

A row whose item already holds a record of that test with exactly the same DATA is left alone, so re-uploading a sheet is harmless.

A zip of JSON files

One file per item, one record per file:

{
  "part_id": "Z00100300005-00018",
  "test_name": "Batch Check",
  "comments": "...",
  "data": { "Inspected By": "CZ", "Boxes": 4, "Damage": { "count": 0 } }
}

Use "serial_number": "BATCH-A" instead of part_id to identify an item by serial. test_name is optional; otherwise the name on the page is used. comments is optional.

Keys are matched regardless of case, spaces or underscores (External ID, Serial Number, Test Name, DATA work too). Without data, every other key is the test data. A file that is not such an object shows as a problem row.

Files to attach — one per row

A sheet is an attachment sheet when the block says Record Type,Item Image or Test Image, or it has an Image File column. The files themselves are picked in the browser after Check — several files, or a folder — and matched to rows by name; each goes straight from your computer to HWDB. The result list shows each attachment’s HWDB image_id.

A file already attached under the same name is left alone.

Jobs

A read file becomes a job holding its rows, mapping and plan, so an upload continues after a reload or a lost connection. Jobs are yours only, per HWDB instance, and are removed 3 days after their last change. The Explorer never keeps the file.
