This lesson is being piloted (Beta version)

DUNE HWDB Training: HWDB Dashboard

This page describes usage of the HWDB Dashboard which provides data obtained from the HWDB visually (e.g., by plotting them).

Contents

Section Description
Requirement Must have the Python HWDB Tools installed. Need to have dash and pandas additionally
Startup A screen when launched
  How it works Brief description of how it works
Preferences Setting up the version of the HWDB and your local working directory
Plots tab Plotly
  Pre-Filters Applying filtering conditions on the HWDB side before syncing
  Component Type ID/Name, sync, and select a local file Sync to the HWDB, read-in a local csv file… etc
  Chart Type Selecting a plotting method (e.g., histogram, scatter…etc)
  Selecting a variable(s) to be plotted Naming scheme of flattened structure
  Selecting conditions How to apply conditions
  Saving filtered Items in CSV Saving both the resultant filtered data the selected conditions locally
  Some example plots See if you could draw plots similarly!
Type Getter tab Let you go up/down through the HWDB ID hierarchy to find a Component Type ID
Shipment Tracker tab See the all statuses of your shipments on a single pane


Requirement:

This is a part of the Python HWDB Tools. If not already, please refer to Using the Python HWDB Tools section to obtain and install it first. Make sure to install version 1.4.1 or newer. The latest version can be found from here.

And to use HWDB Dashboard, you will need three additional packages, dash, pandas, and dash_bootstrap_components, if you don’t have them arealdy:

conda install conda-forge::dash
conda install conda-forge::pandas
conda install conda-forge::dash-bootstrap-components

back to top

Startup:

In your terminal, start it up via:

hwdb-dash

This will auto-launch your default web browser with http://127.0.0.1:8050/.

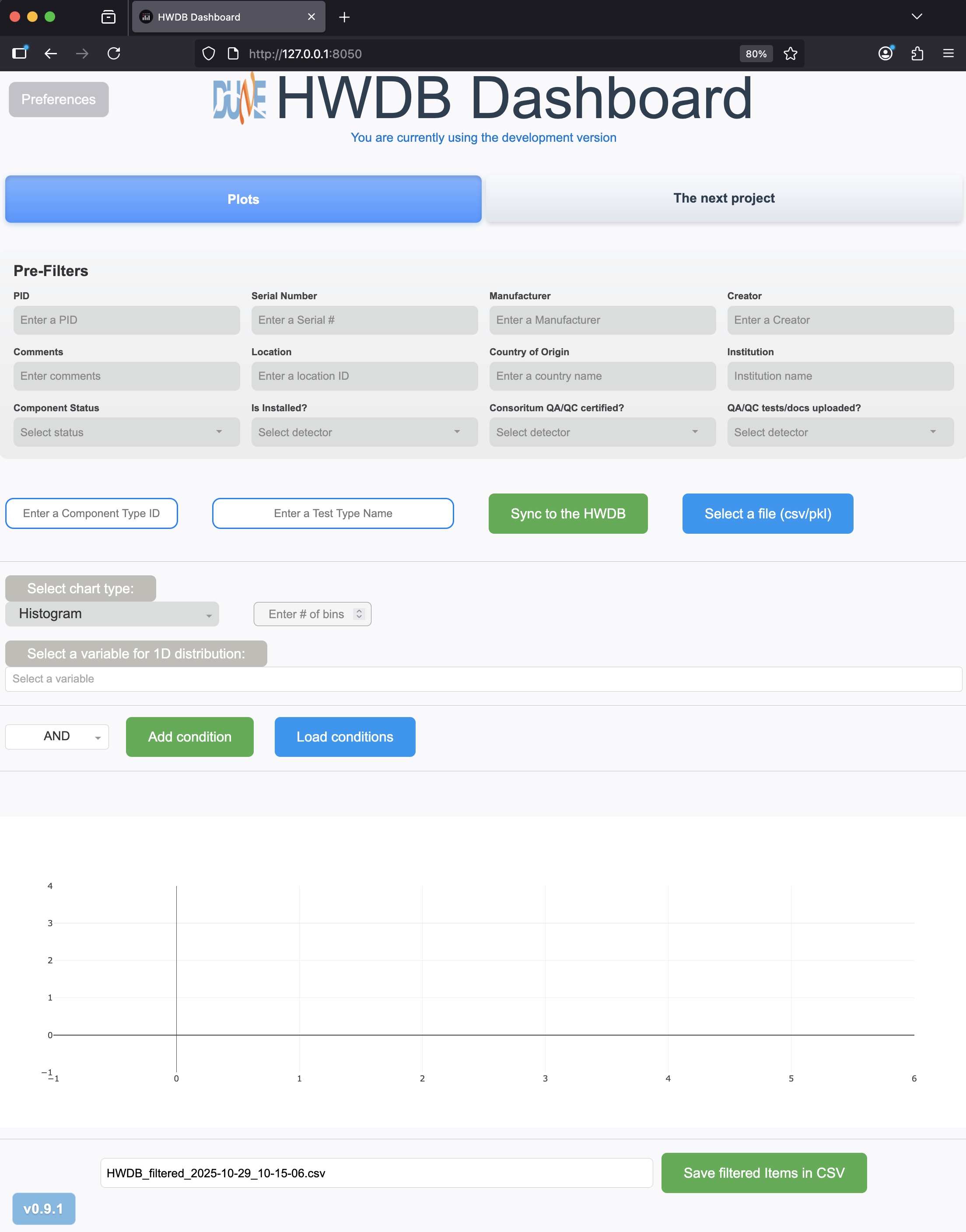

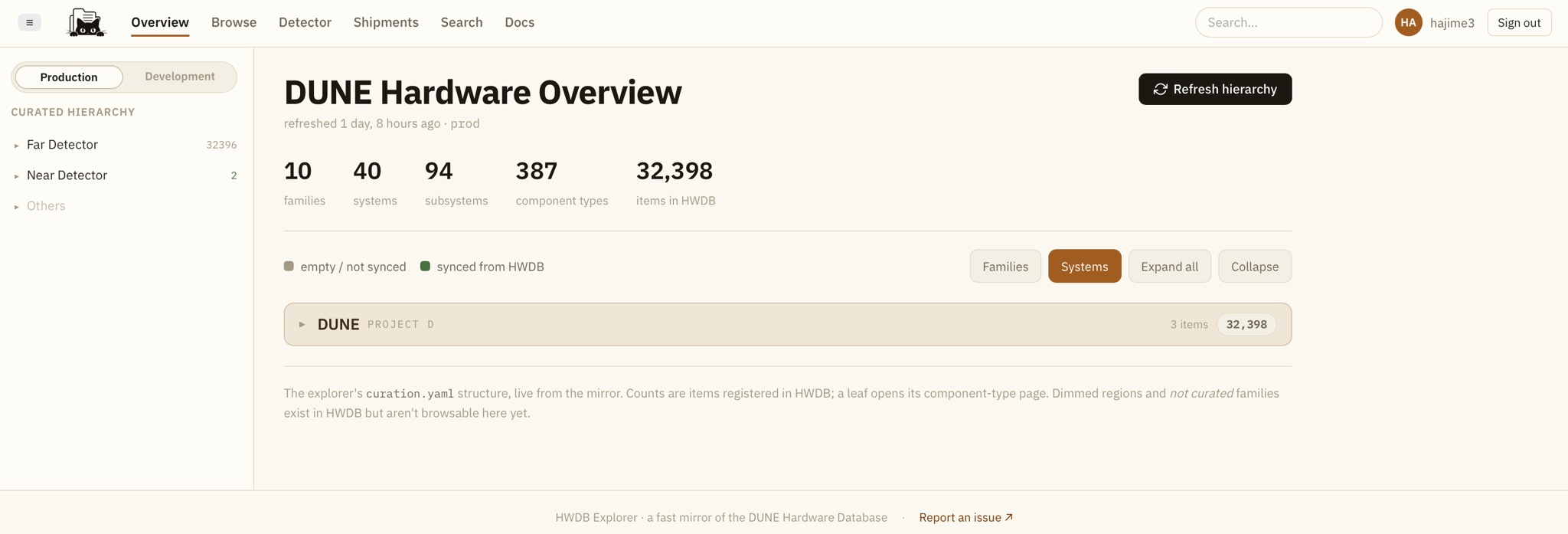

In your browser, you should see something like below:

dashstart





How it works:

There are three tabs currently available, Plots, Type Getter, and Shipment Tracker. We will describe each of them below. In short:

For the rest of this page, we describe how exactly individual buttons work.

back to top

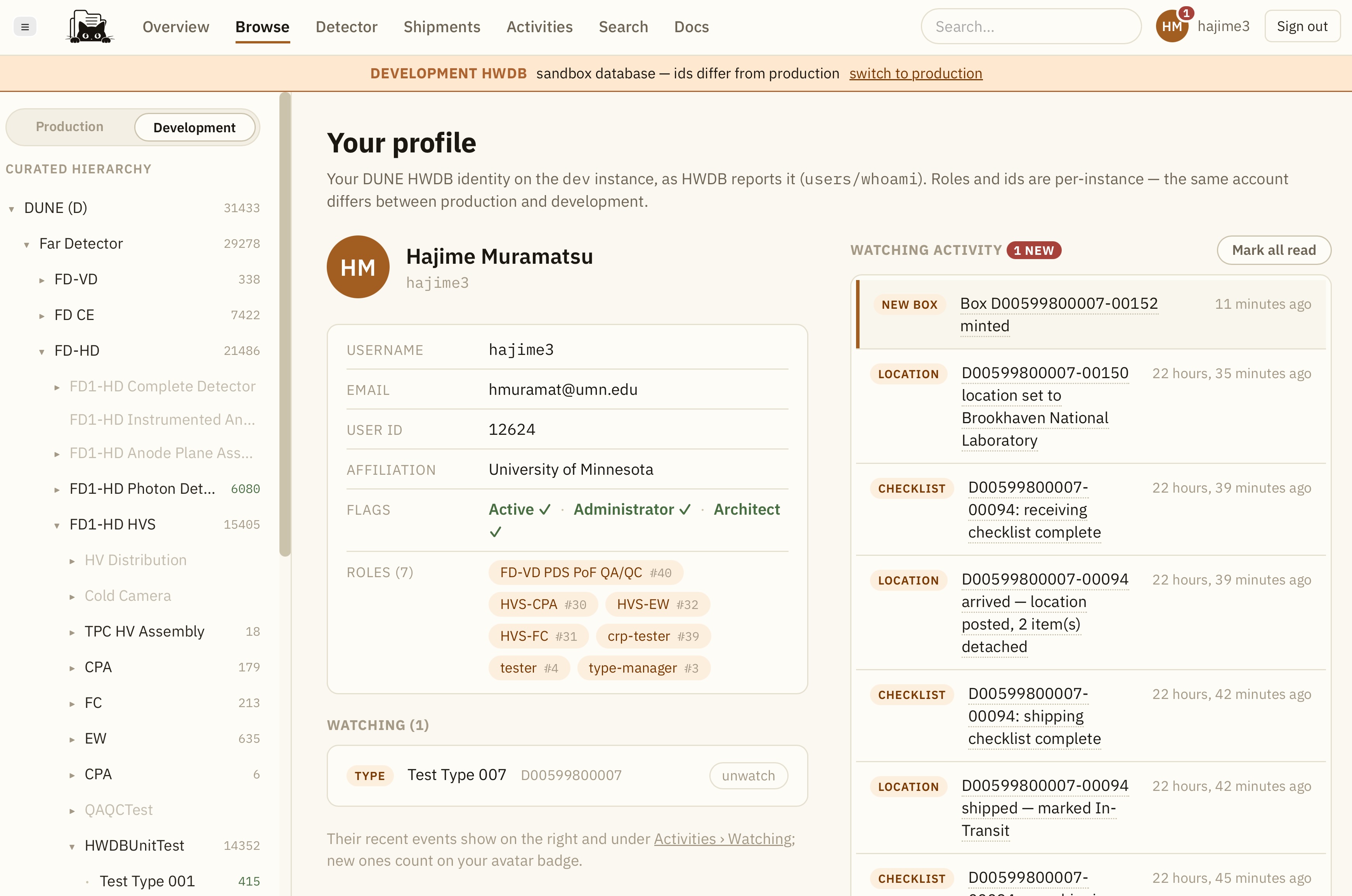

Preferences:

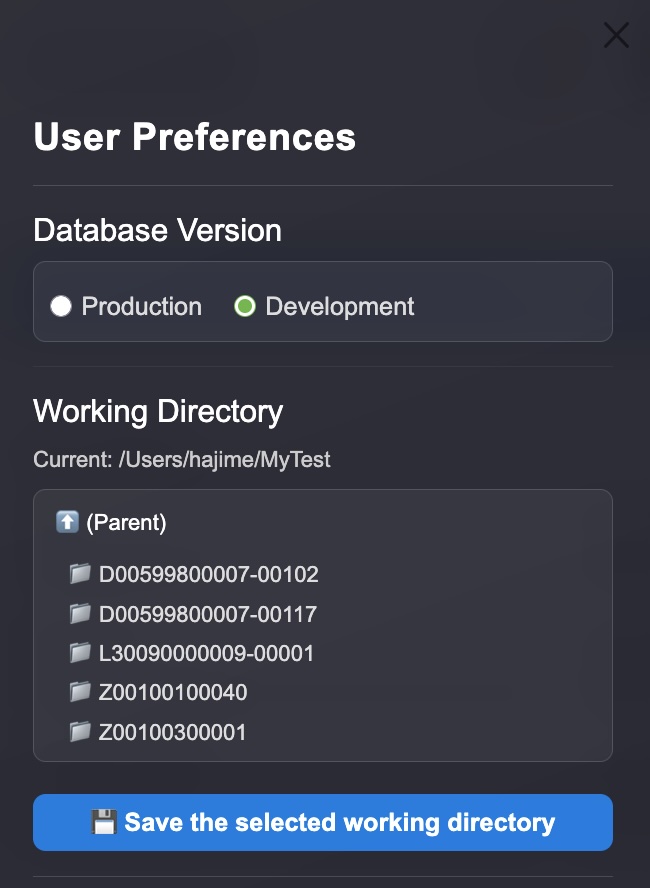

The Preferences button sits at the top-left conner. Clicking the button shows a screen like the one below slided in:

dashpreferences

You need to do two setups here:

back to top

Plots tab:

Pre-Filters:

Probably they are self-explanatory. You could (you don’t need to) apply certain conditions before you let Dashboard sync to the HWDB. This would potentially shorten the actual syncing time.

back to top

Component Type ID, Test Type Name, Sync to the HWDB, Select a file, and Select a csv to overlay:

Component Type ID:

In this box, you input a Component Type ID, which must already exist in the HWDB. Dashboard will complain if you provide a non-existent ID.

Test Type Name:

This is optional. If you like to access to a variable(s) that is stored in Test Log of Items under the provided Component Type ID, then insert the corresponding Test Type Name here. Again, Dashboard will complain if you provide non-existent Test Type Name.

Sync to the HWDB:

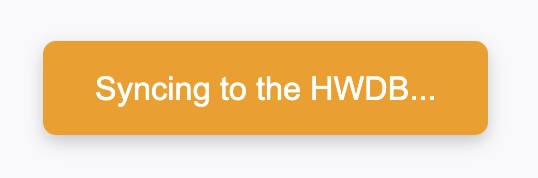

Clicking this initiates Dashboard to communicate with the HWDB. The button turns into orange-ish color as shown below while talking to the HWDB. dashsyncing



Also…

While Dashboard stores the downloaded data in its memory, it also stores the downloaded data as a pickle file.

  • It saves in /<Your working directory>/<provided Component Type ID>/. If the sub-directory, /<provided Component Type ID>/,doesn’t exist, Dashboard will create one.
  • The saved file name would be HWDB_downloaded_<provided Component Type ID>_<time stamp>.pkl. If a Component Test Type Name is provided, the file name would be HWDB_downloaded_<Test Type Name>_<provided Component Type ID>_<time stamp>.pkl, instead.

Select a file:

Let’s you select a file, which must be either csv or pickle file, to load-in. The loaded-in data then can be plotted. This is for files that are saved by Dashboard itself. We’ll describe about saving later below.

Select a csv to overlay:

Sorry that this button might be slightly confusing with the previous one, “Select a file”. This button should be used only when you like to overlay another distribution over an existing one. When clicked, it will ask you to select a csv file that contains data of the distribution that you like to overlay. There are two restrictions:

back to top

Chart Type:

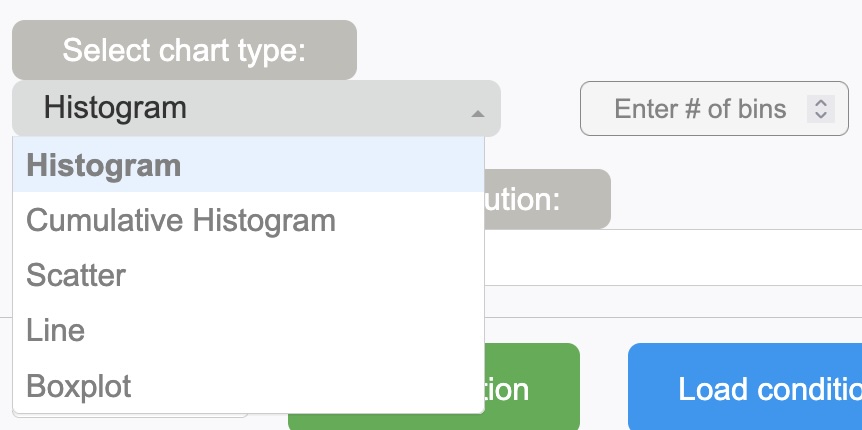

Select a type of distribution that you like to plot. As can be seen below, available types are:

dashcharttype

# of bins:

Again, this is optional. Bins are auto-binned. However, you could enforce them to finner or broader binning.

Boxplot:

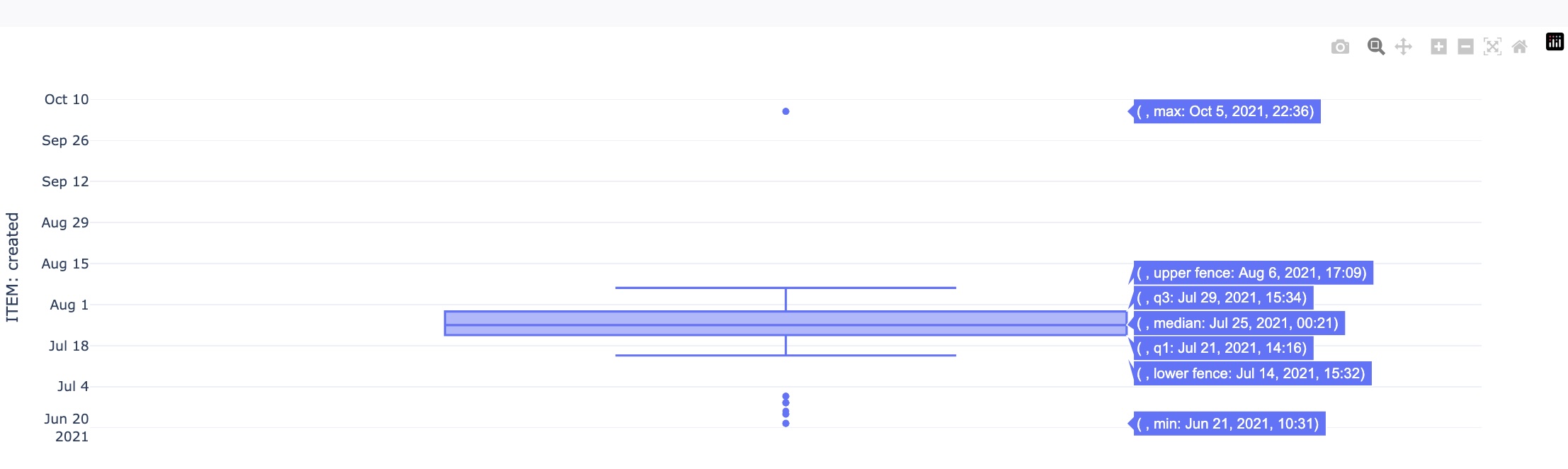

This is to visualize the data (aka box-and-whisker plot). An example plot is shown below:

dashboxplot

Scatter:

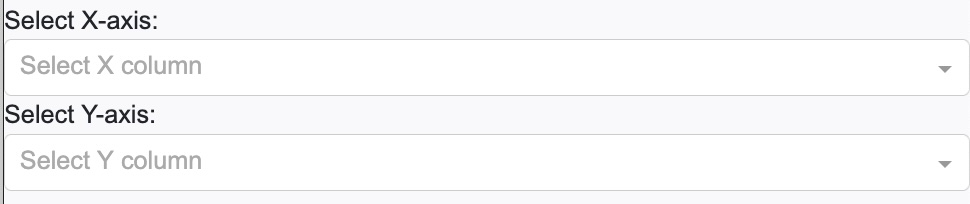

This is to plot a very simple 2D scatter plot. When this type is selected, you need to select the corresponding 2 variables to be plotted as shown below. We’ll describe naming scheme of available variables later below.

dashscatter

back to top

Selecting a variable(s) to be plotted:

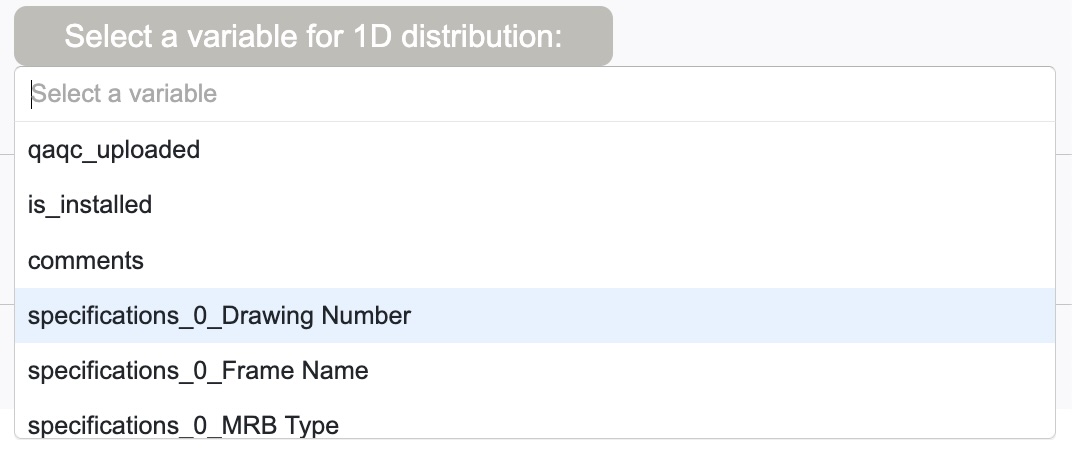

Next, you need to select a variable (or variables if you select scatter for your chart type). In principle, all variables, that are stored in the HWDB, should be available, including those in Item/Test Specifications, with the exceptions of binaries (images, pdfs, and csv files), as seen below:

dashvariables

These variable names are the ones what the HWDB REST-API returns, except when there is a nested structure, such as “Item Specifications”.

To flatten such structure, we insert “_” between layers. For the case of “Item Specifications”, since the HWDB stores its modification history in array, Dashboard grabs its latest entry. Hence there is “0” inserted in the above example.

When a Test Type Name is provided, names of all available variables start with either “ITEM:” or “TEST:”, depending on whether they belong to Items or Tests, as shown below.

dashvariablestest

back to top

Selecting a value(s) of the selected variables:

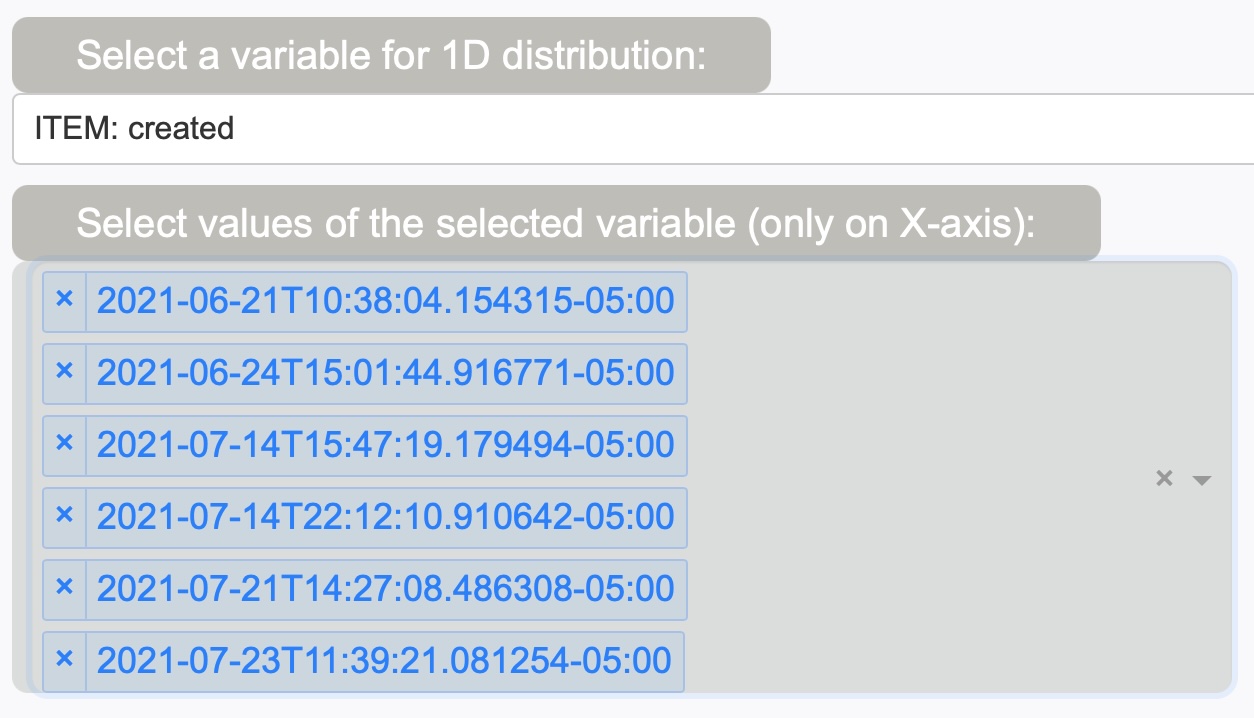

Optionally one could choose a particular value (bin) on the selected variables to be plotted, or could also select multiple values (bins) as shown below. In this example, plotting certain values of created (dates/times).

One could also toggle the selection with the toggle button as well. This will NOT to plot the selected bins. dashvalues

Selecting conditions:

In selecting conditions, you start by selecting the overall logis to be applied. It has to be either “AND” or “OR”. Then click “Add condition” to start a condition (or keep clicking it as many conditions as you like to apply).

Next, select a variable that you like to apply a condition, select an operation (>, <, ==, contains…etc), threshold, the corresponding color, then finally click “Apply”.

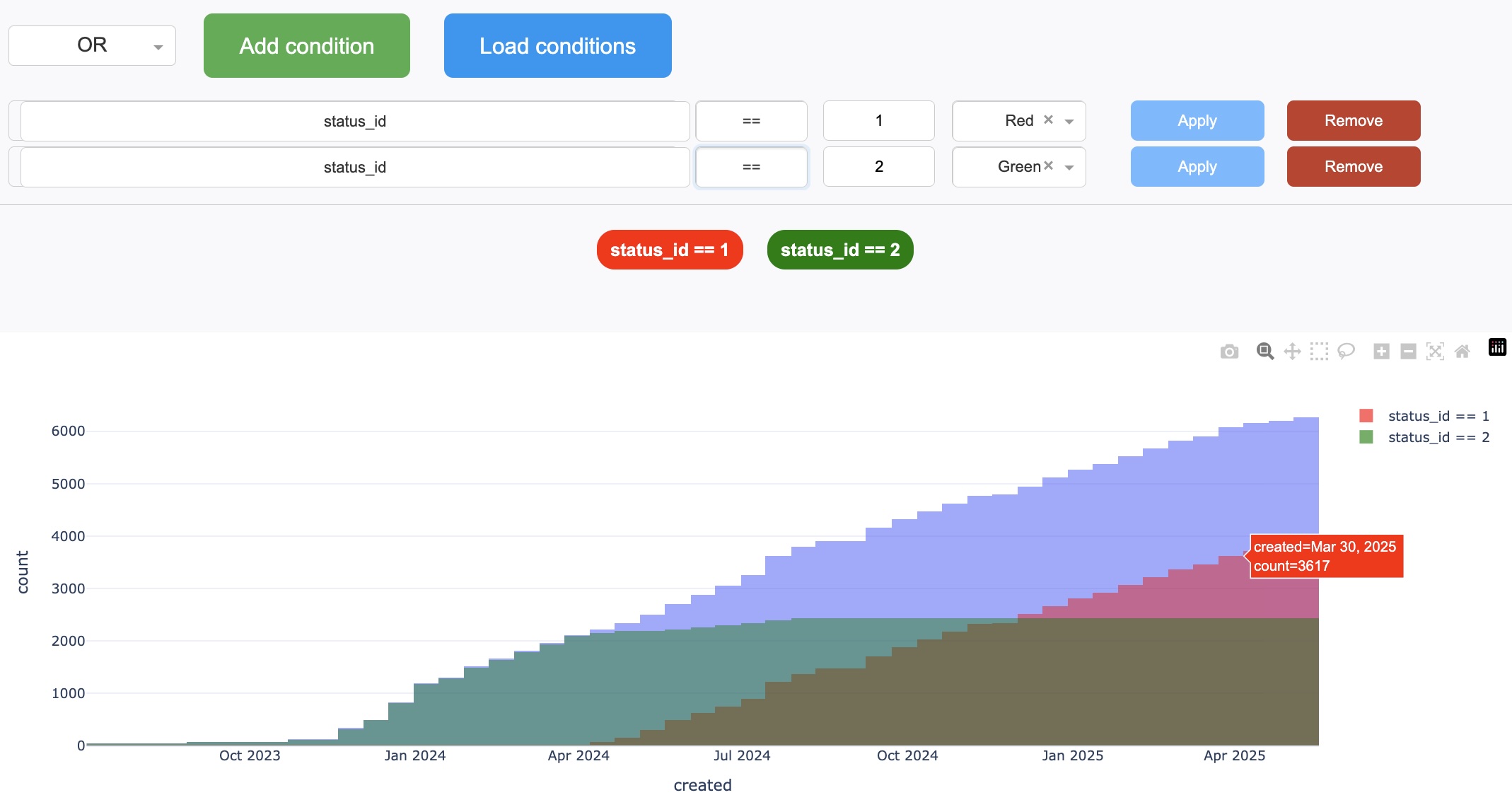

An example plot with two conditions are shown below:

dashconditions



Dashboard only overlays the filtered distributions here, ignoring the chosen overall logic (“AND” or “OR”). The chosen logic will be employed when it saves the result, which we’ll describe later below.

Load conditions:

Clicking “Load conditions” button lets you select a saved set of conditions from a local directory. Again, we’ll describe about this later below.

back to top

Saving filtered Items in CSV:

Clicking “Save filtered Items in CSV” will do two things:

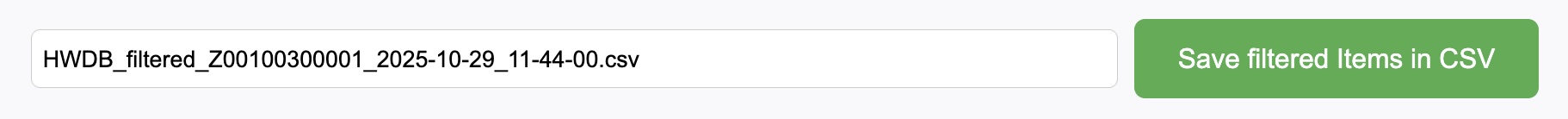

As can be seen below, one could also specify a file name as well, while the default file name is auto-suggested there.

dashsaving



Also…

The saved csv file has the usual format:

  • Column labels, for each of the flattened variables, at the 1st row.
  • Each of the rest of the rows represent individual Item (PID).

back to top



Some example plots:

We show examples below. Try to plot some by yourself as well!

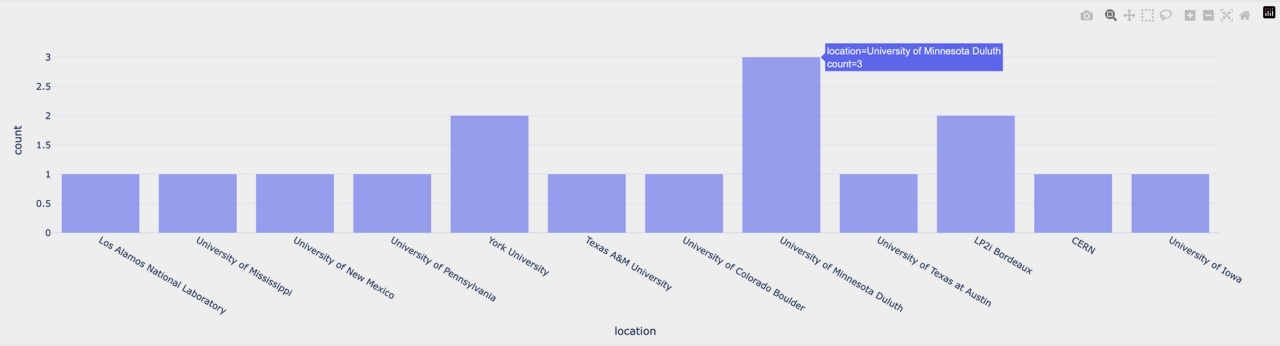

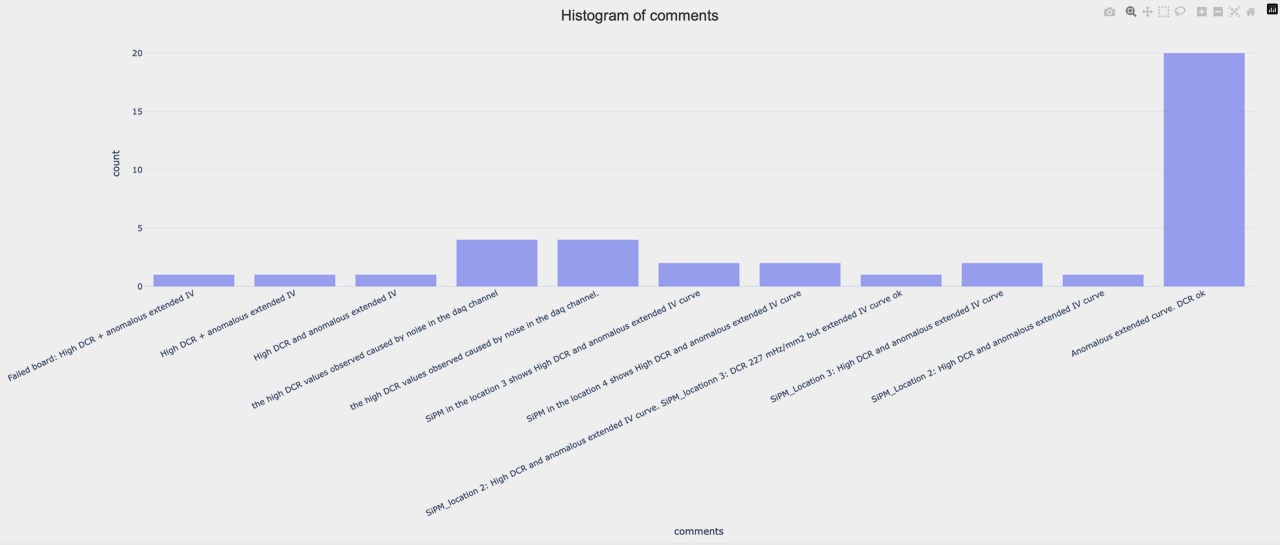

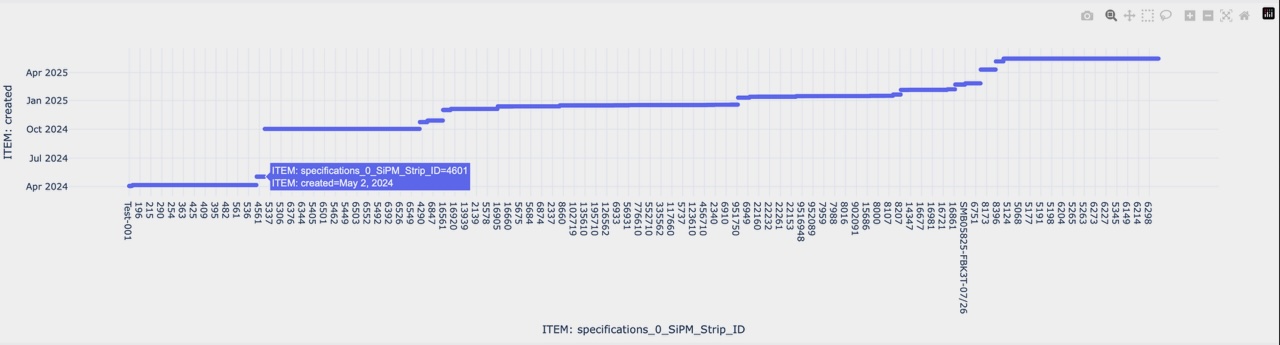

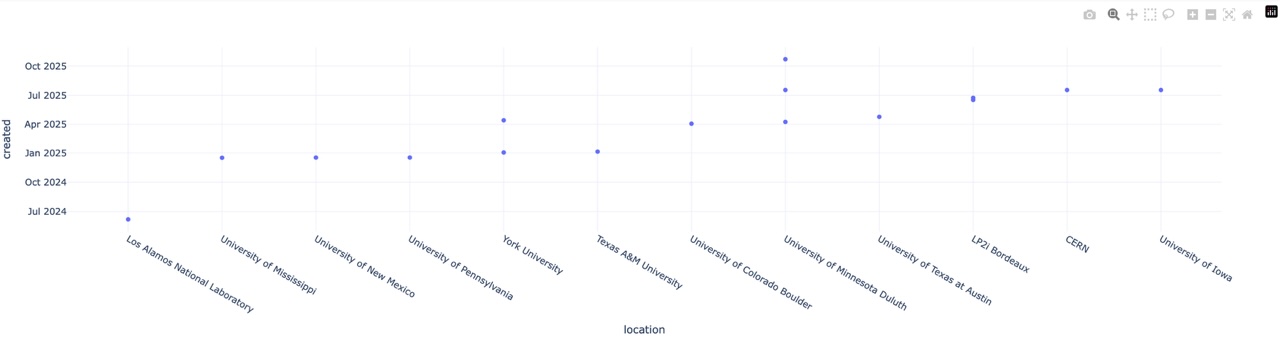

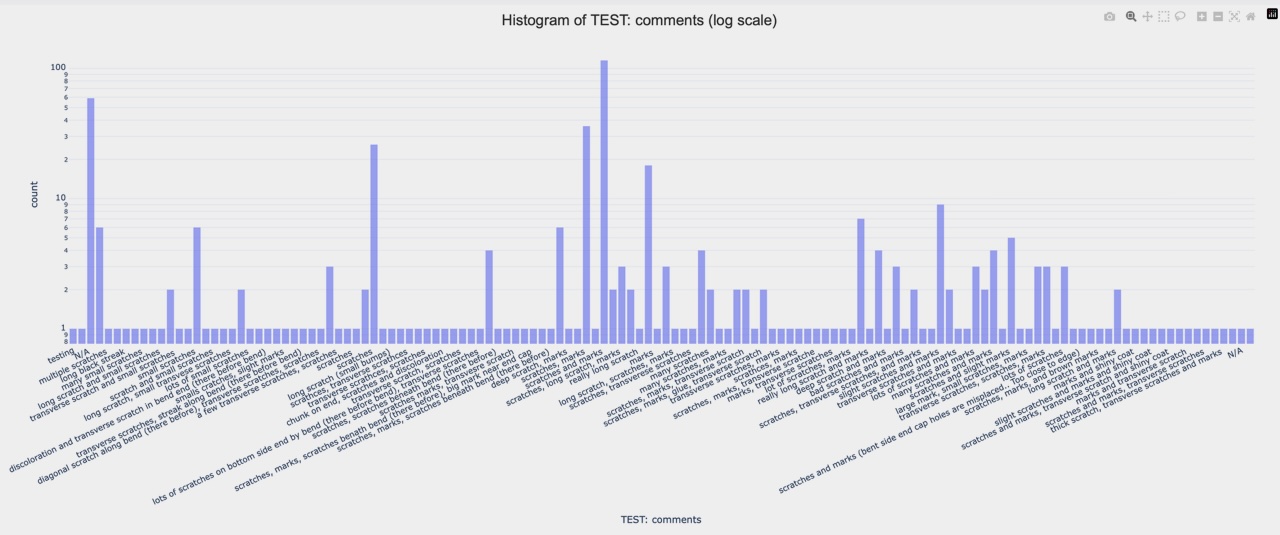

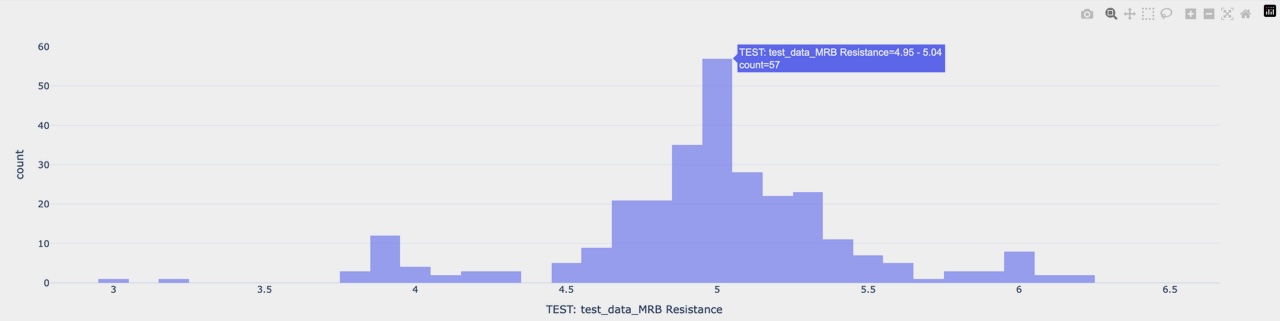

1D: Locations: plot_location 1D: Measured resistances on mini resistor boards: plot_mrb_resistences 2D: Dates vs SiPM Strip IDs: plot_dates_stripIDs 2D: Dates vs Locations: plot_dates_locations 1D: Comments: plot_comments_1 1D: Comments in log scale: plot_comments_2

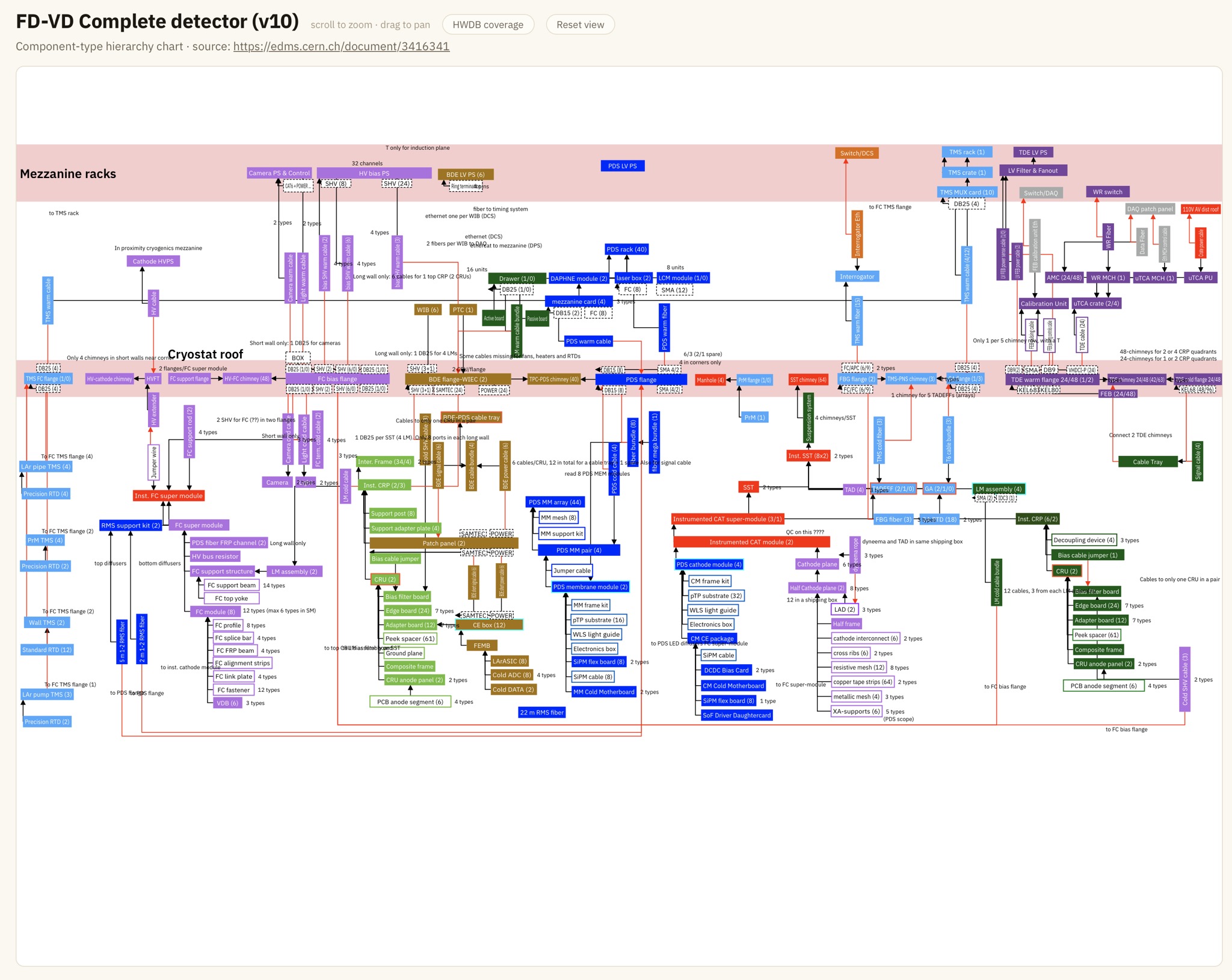

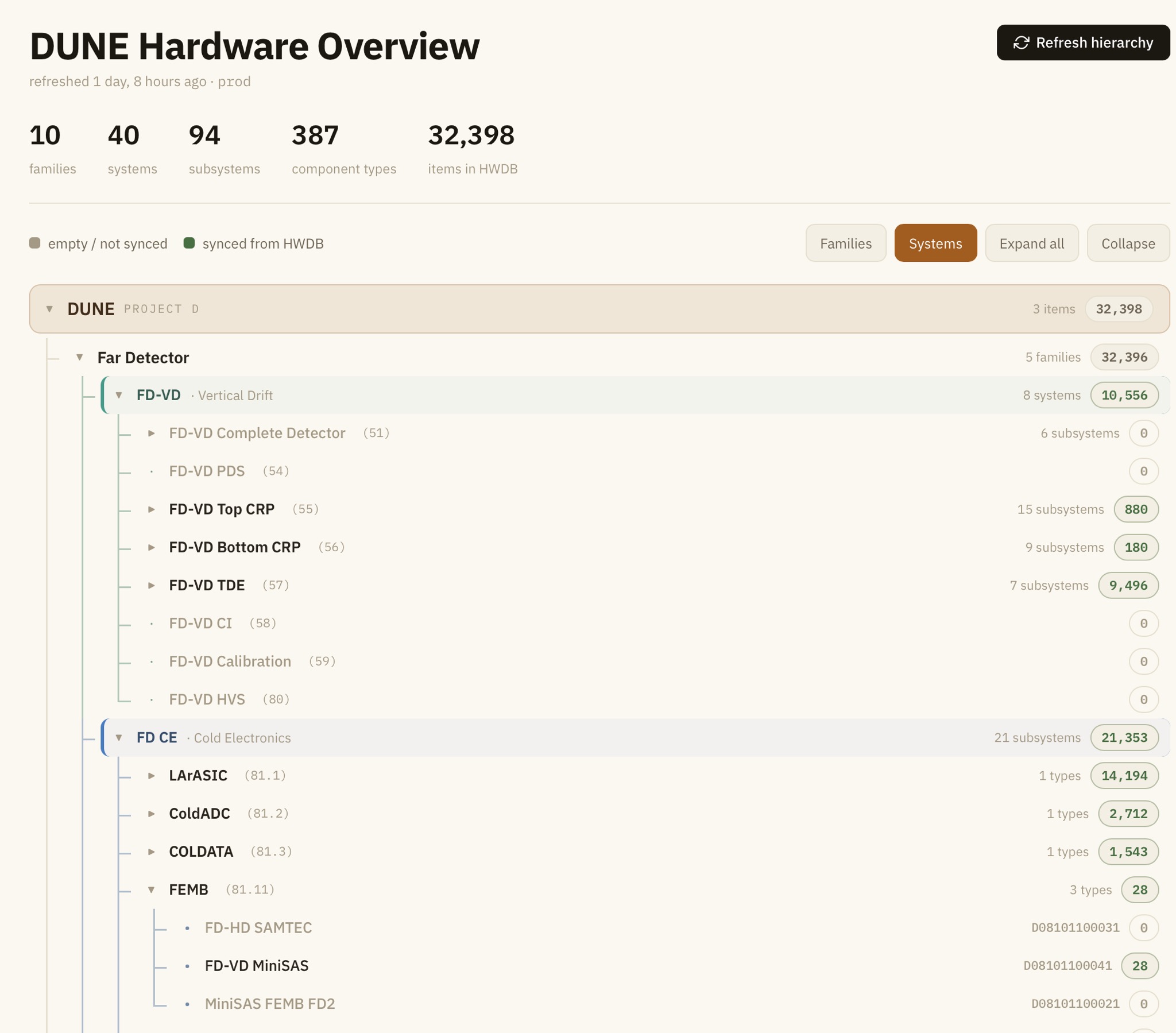

Type Getter tab:

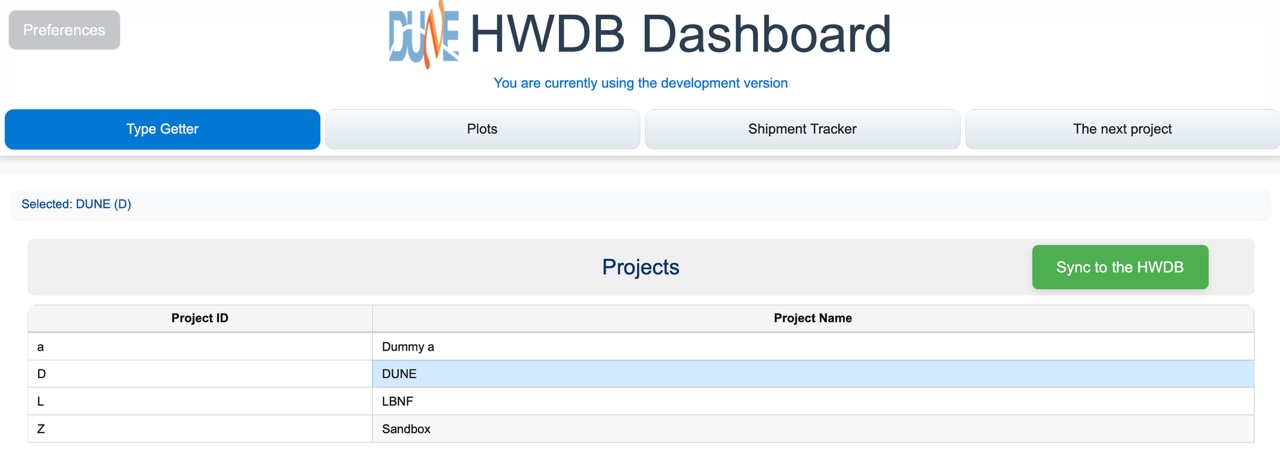

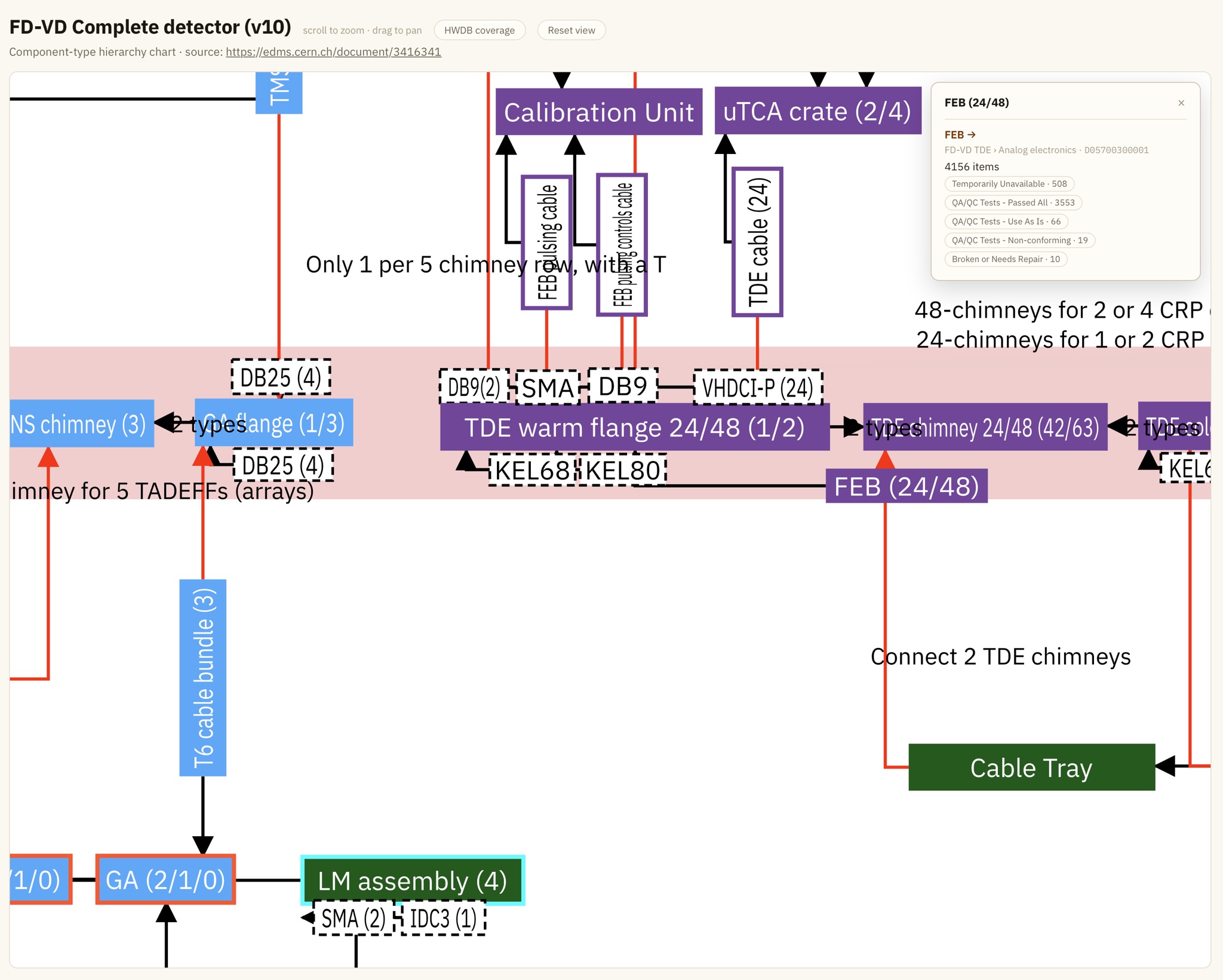

This should be really self-explanatory. It starts with a list of existing Projects. When a browser is newly launched, you would be seeing a blank page. Go ahead to update the blank list by clicking the green Sync to the HWDB button. You should then see a list like the one below:

list_projects

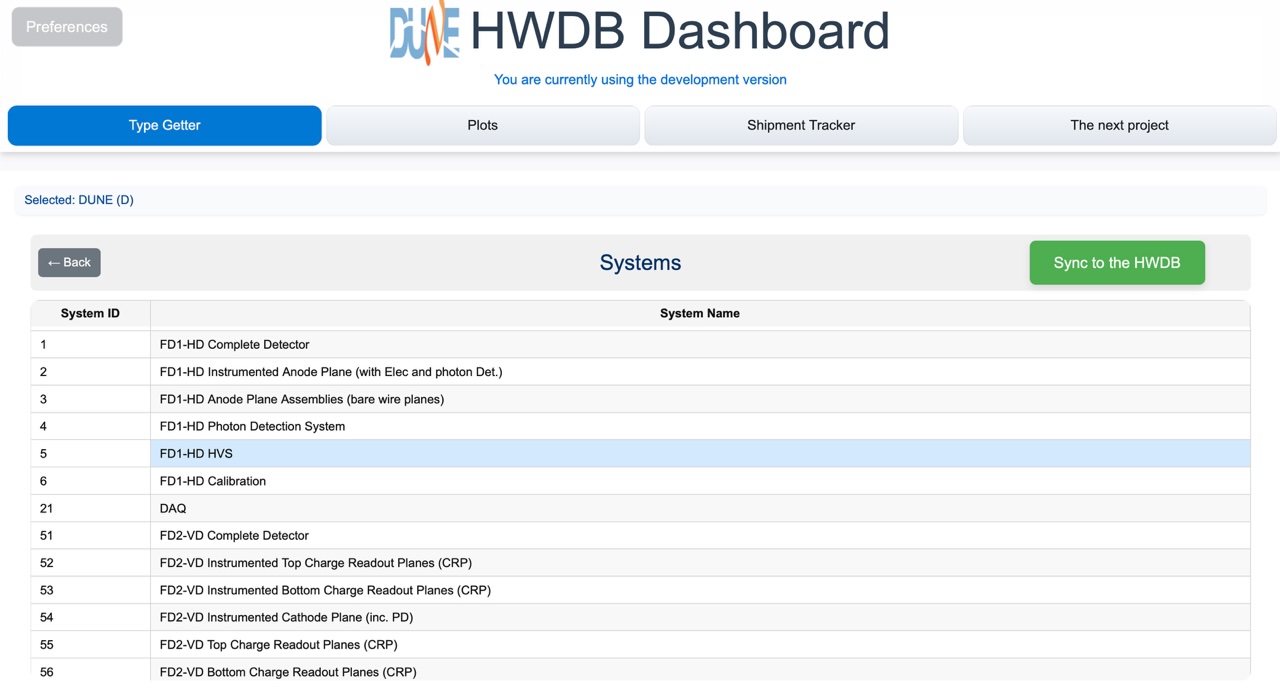

Now, go ahead to select a Project. E.g., “DUNE”. That would take you to show a list of the currently existing Systems. Again, don’t forget to click the green Sync to the HWDB button to update the list.

list_systems

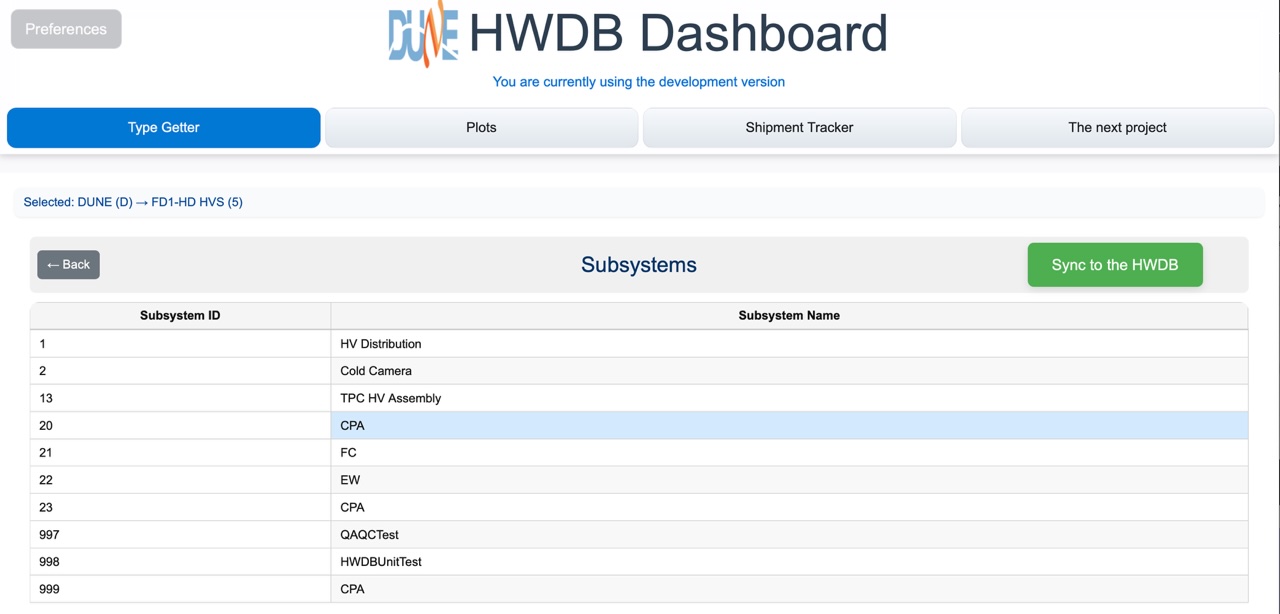

Select a System, e.g., “FD1-HD HVS”. That would then take you to a list of Subsystems like below:

list_subsystems

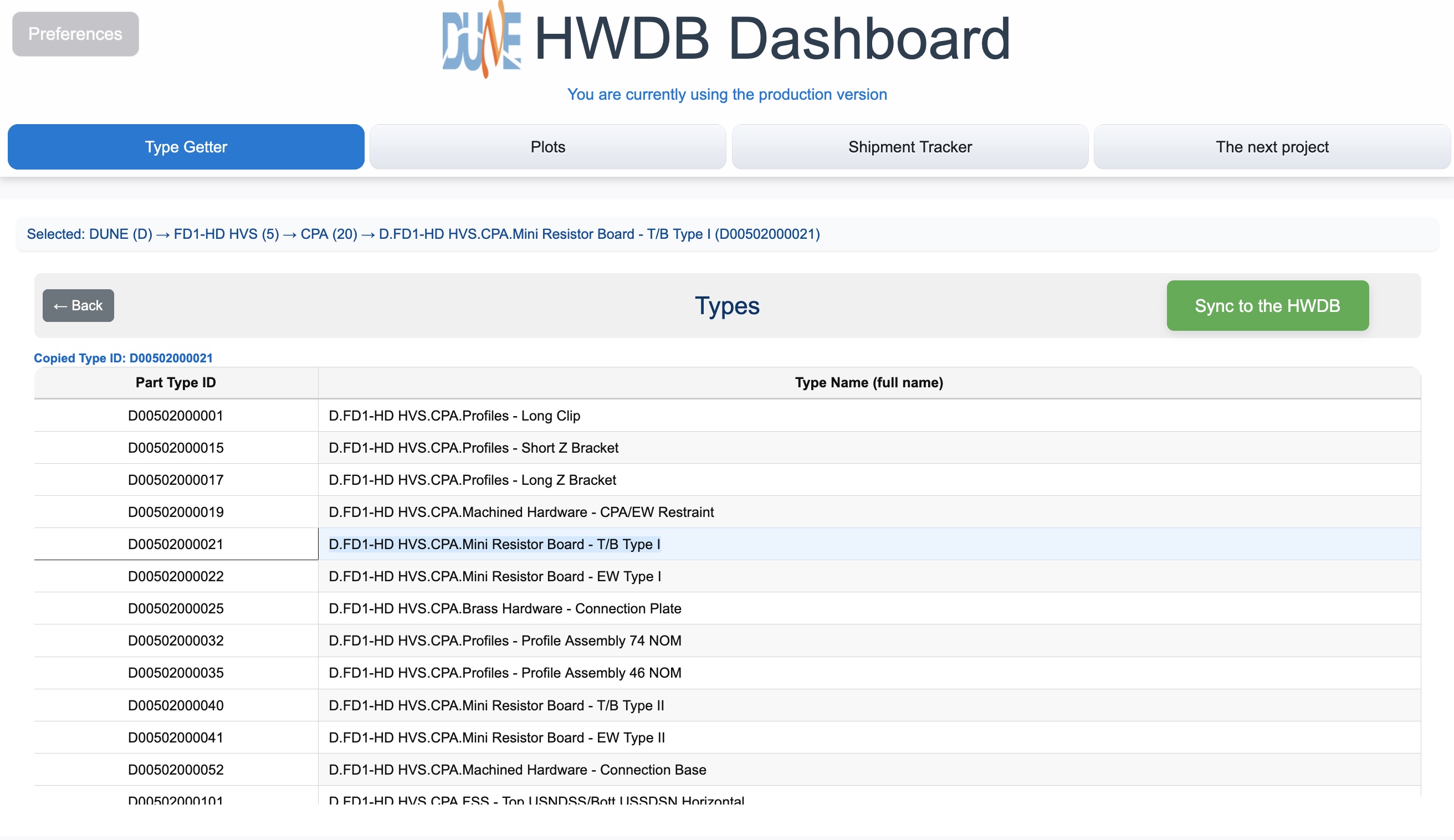

Now select a Subsystem, e.g., “CPA”, which finally takes you to a list of Types as shown below.

list_types

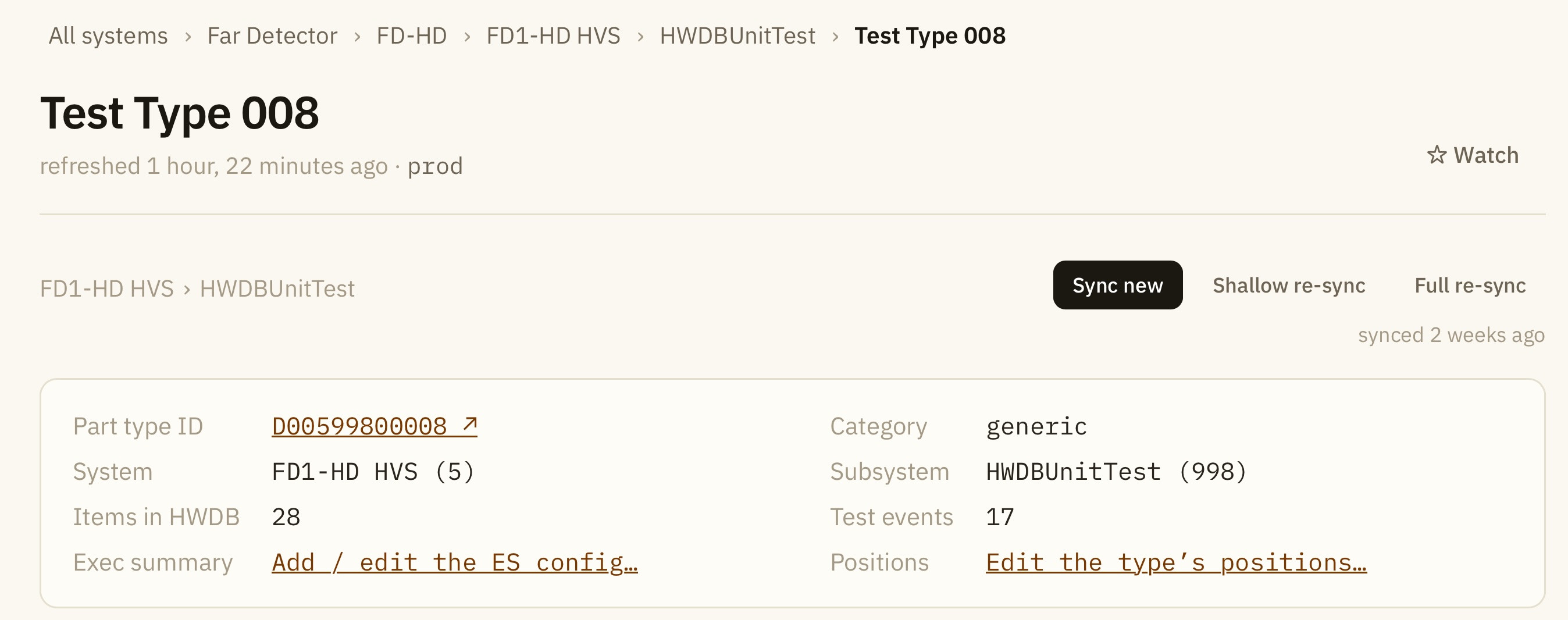

Select a Type, such as Mini Resistor Board - T/B Type I. It will copy the corresponding Component Type ID (D00502000021 in this case) to its clipboard, which you could then paste in another tab (Plots and/or Shipment Tracker).

back to top



Shipment Tracker tab:

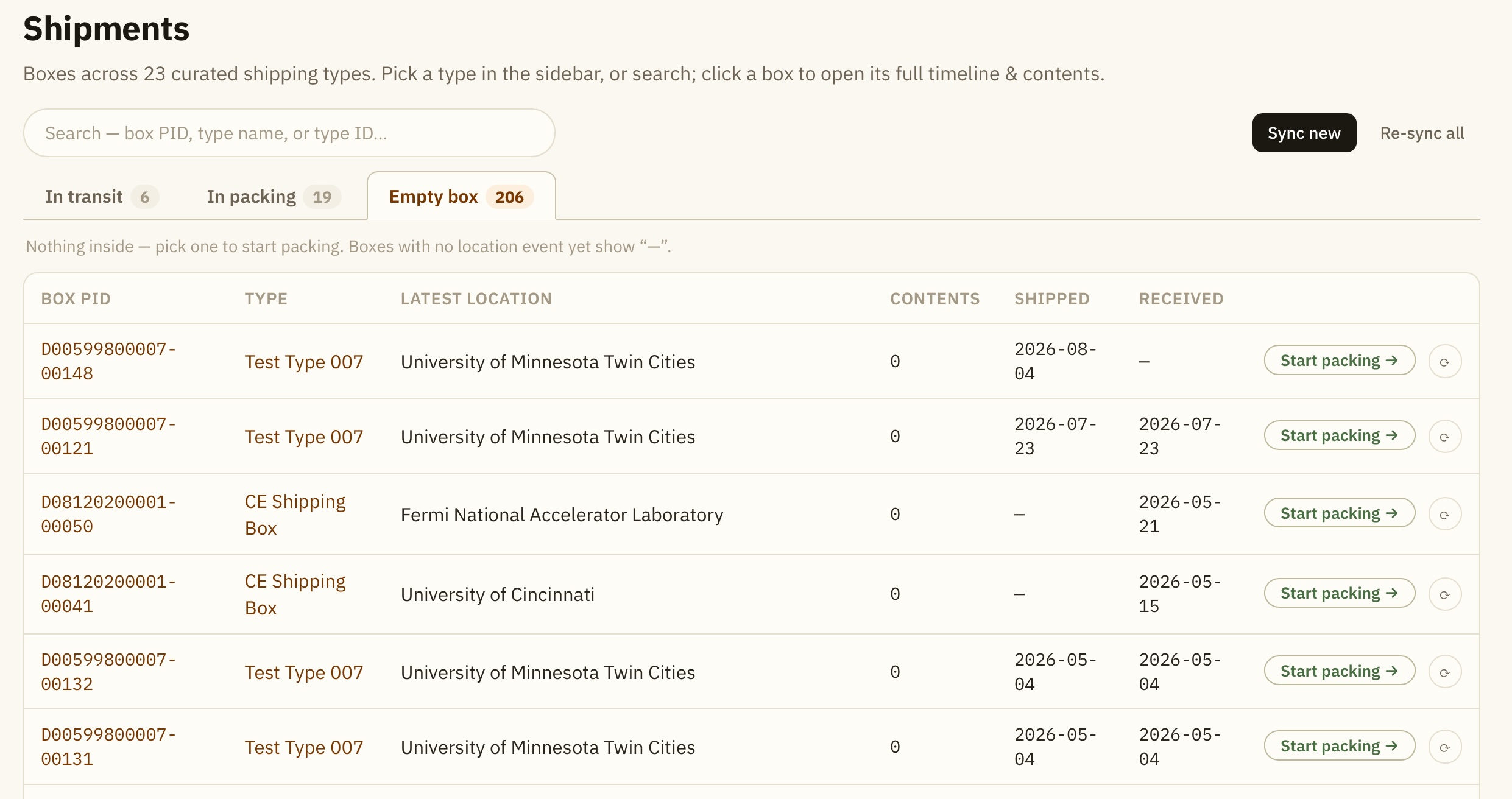

In this tab, you start by providing a Component Type ID that corresponds to your shipping box type. If you don’t have one, try D00599800007 in the development version of the HWDB, for testing purpose. As Dashboard will try to obtain information of the individual shipping boxes that are created under this Component Type ID, it might ake sometime to finish syncing. Be patient.

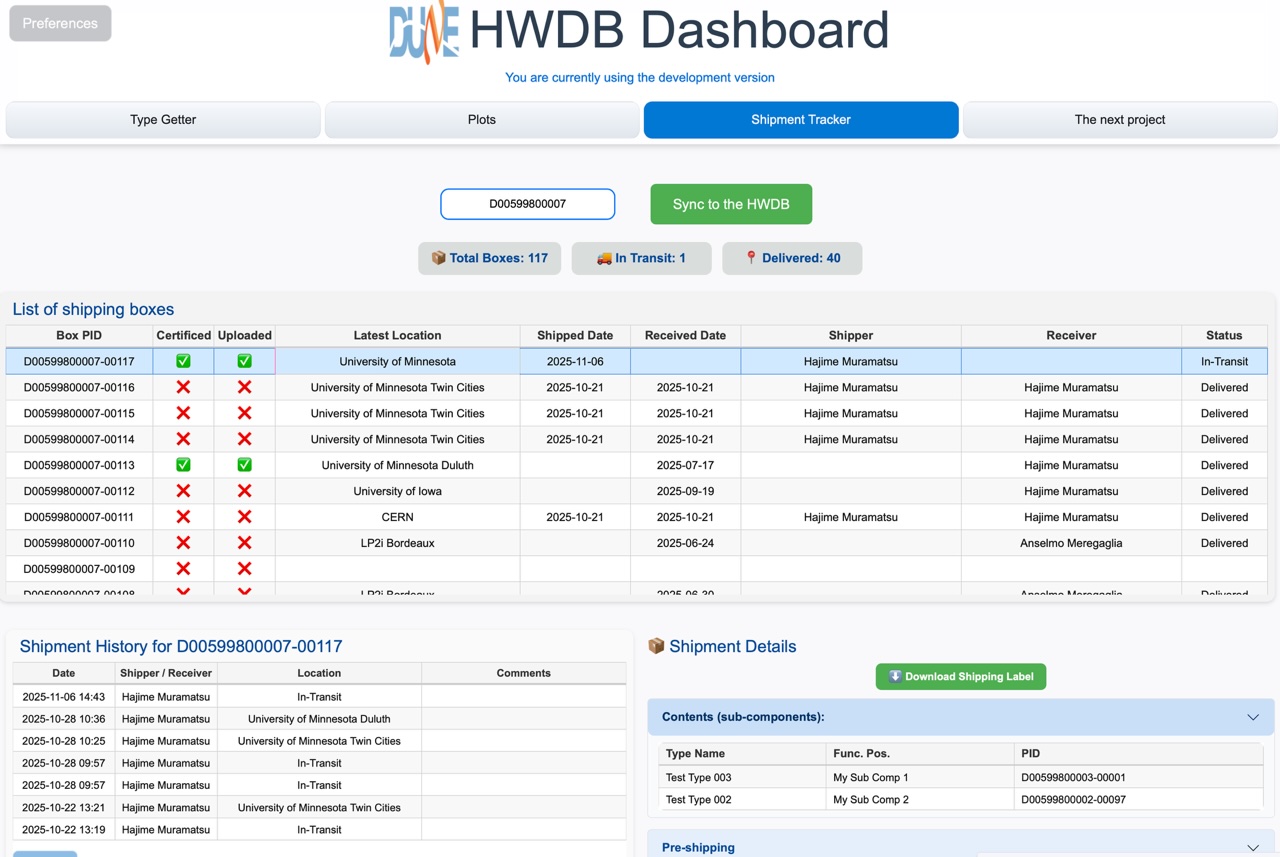

Once synced, you should be seeing a list of shipping boxes like the one shown below:

shipmenttracker_main

In its top half, it displays;

The list of individual boxes shows the following columns:

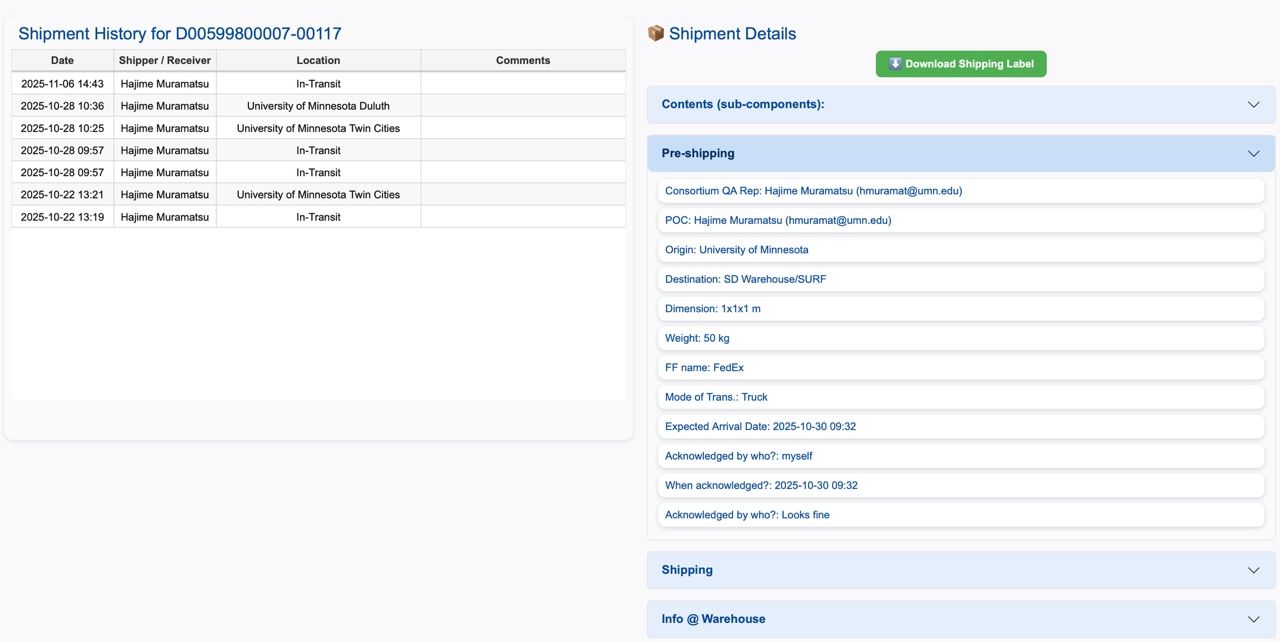

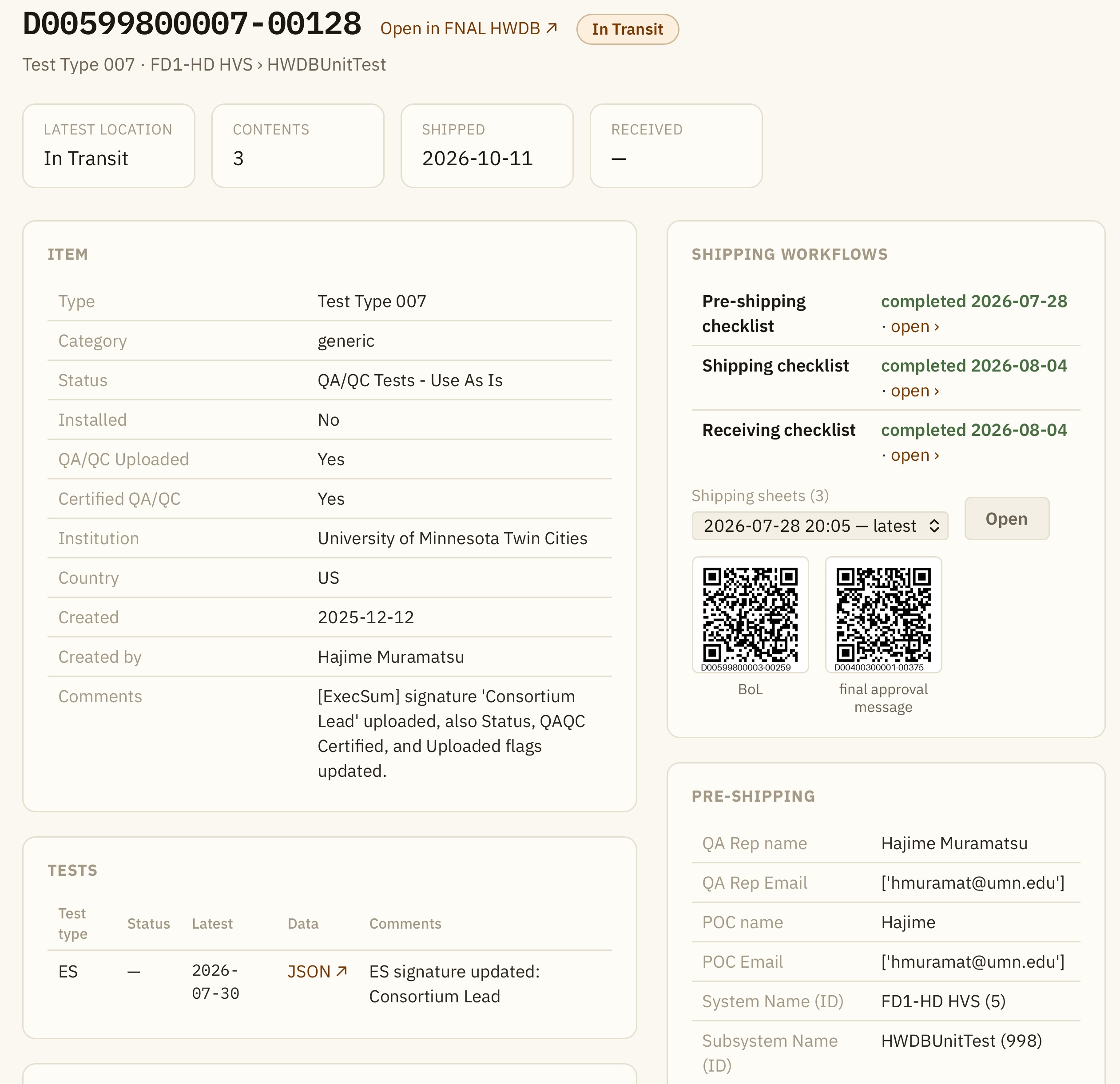

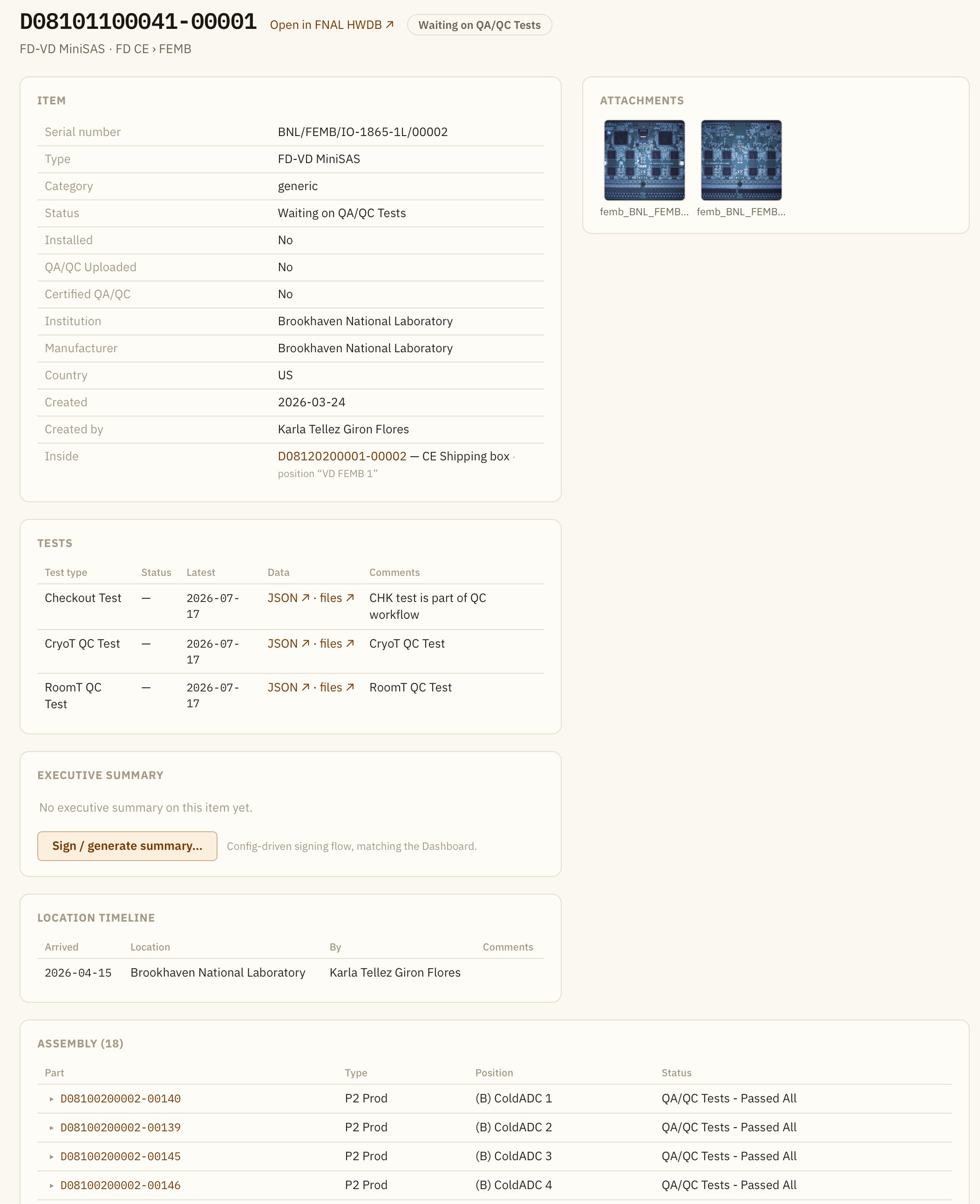

Selecting a particular shipping box (a row) from this list takes you to the bottom half of this tab, to show more detail information about the selected shipping box, as can be seen below. Here, shipping box PID, D00599800007-00117, is selected as an example.

history_shippingbox

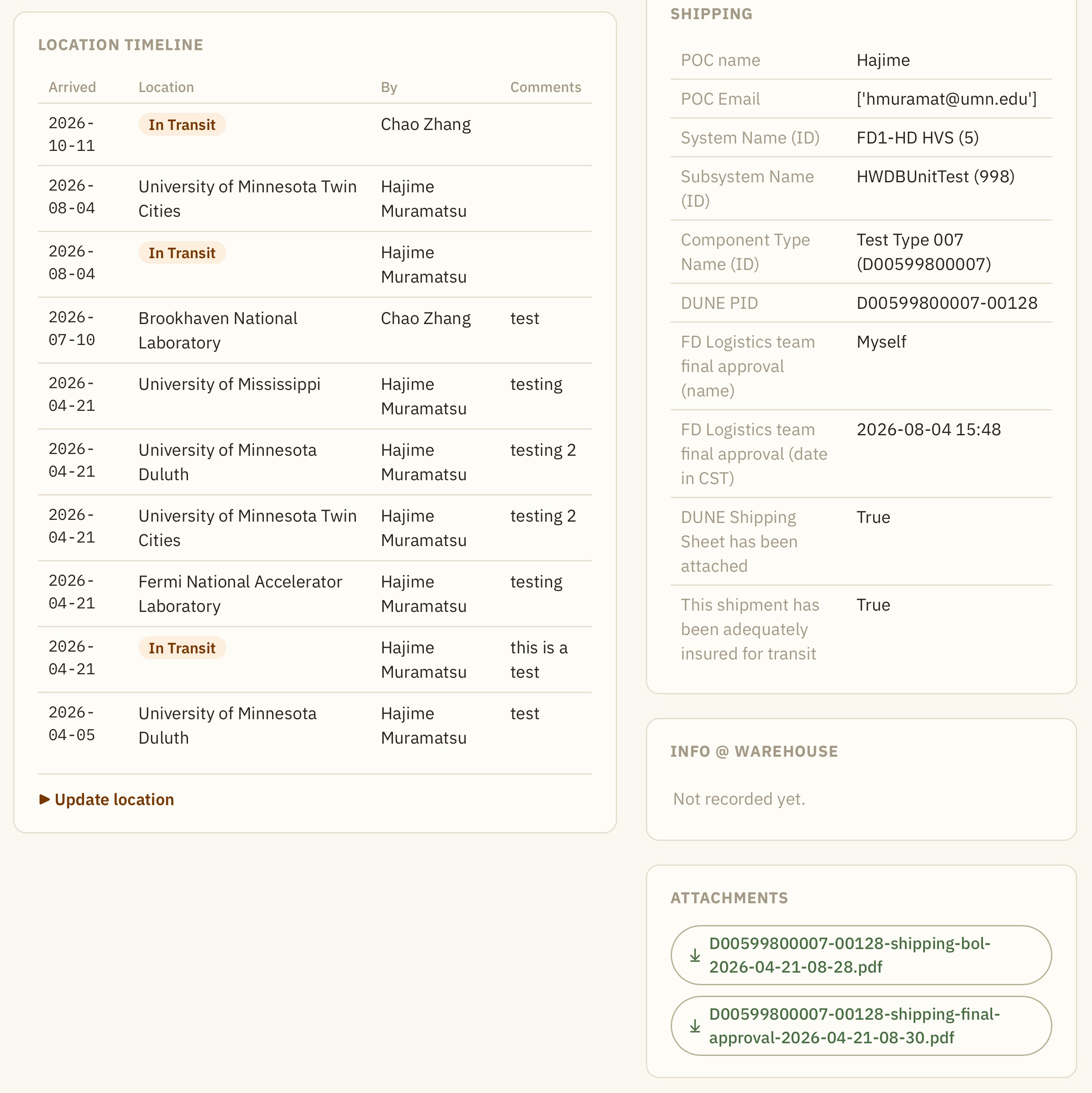

In this bottom half of the tab, on the left, a history of the selected shipping box is shown. This could be particularly helpful if your shipping box happens to have multiple origins/destinations.

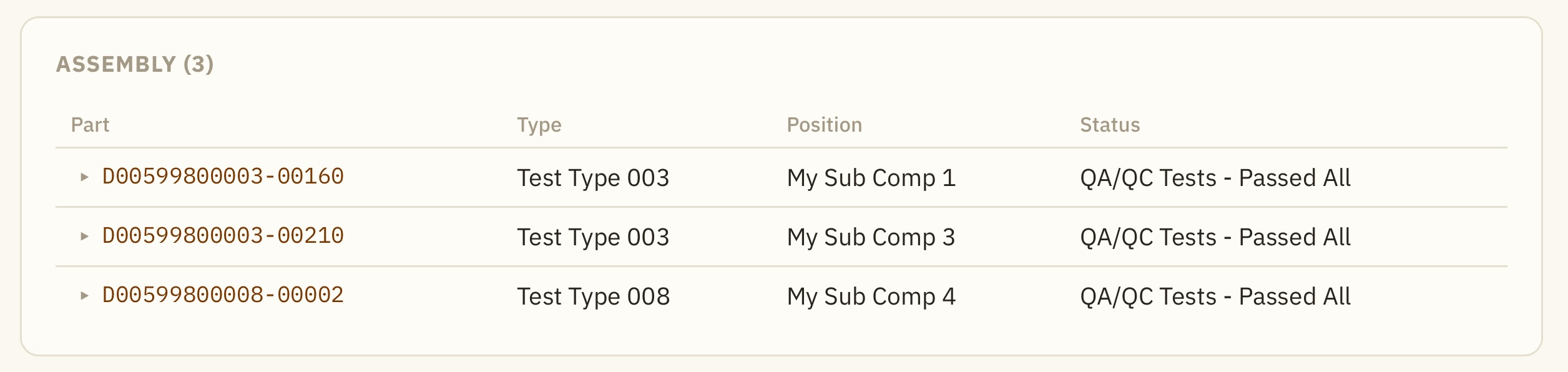

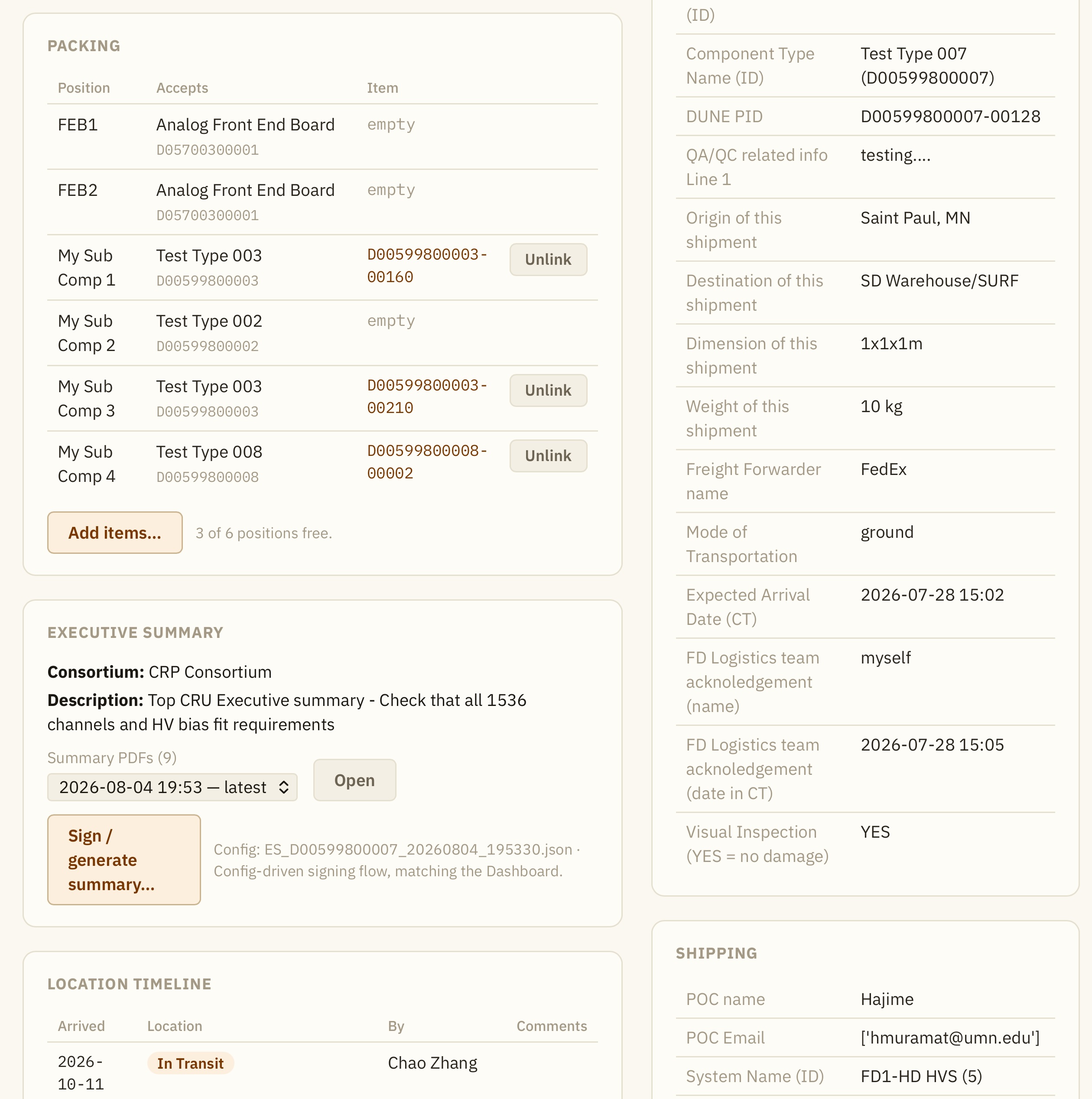

On the right, you see the following information:

back to top
